CAB XD Q

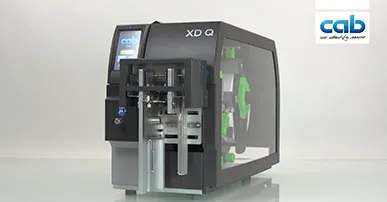

The XD Q printer provides two print heads assembled head to head on the device.
Specifications
Specifications
- Finishing Roll diameter mm max.
- 300
- Finishing Core diameter mm
- 38.1 - 76
- Finishing Winding
- outside or inside
- Label Width mm
- 10 - 110
- Label Height mm at least
- 20
- Label Thickness mm max.
- 0.1
- Liner Width mm
- 14 - 114
- Liner Thickness mm
- 0.03 - 0.16
- Continuous Width mm
- 4 - 114
- Continuous Thickness mm
- 0.03 - 0.5
- Continuous Weight (cardboard) g/m 2 max.
- 300
- Shrink tube Width ready for use mm max.
- 114
- Shrink tube Width continuous, pressed mm
- 4 - 85
- Shrink tube Thickness mm max.
- 1.1
- Ribbon 2) Color layer
- outside or inside
- Ribbon Roll diameter mm max.
- 80
- Ribbon Core diameter mm
- 25.4
- Ribbon Length m max.
- 450
- Ribbon Width mm max.
- 114
- Width x height x depth mm
- 248 x 395 x 594
- Weight kg
- 21
- Transmissive sensor detecting
- labels, punch marks, materials ending, print marks on translucent materials
- Reflective sensor from below or top detecting
- labels, materials ending, print marks on non-translucent materials
- Sensor distance centre to locating edge centered mm
- 0 - 55
- Material passage mm max.
- 2
- Processor, 32 bit clock rate MHz
- 800
- RAM MB
- 256
- IFFS MB
- 50
- Port for plugging a SD memory card (SDHC, SDXC) GB max.
- 512
- Ethernet 10/100 Mbit/s
- IPv4 / IPv6 static IP / DHCP · IEEE 802.1X
- Voltage
- 100 - 240 VAC, 50/60 Hz, PFC
- Consumption of power
- < 15 W in standby / 100 W in typical operation / max. 200 W
- Temperature / humidity Operation
- +5 - 40°C / 10 - 85 %, not condensing
- Temperature / humidity Stock
- 0 - 60°C / 20 - 85 %, not condensing
- Temperature / humidity Transport
- –25 - 60°C / 20 - 85 %, not condensing
- Approvals
- CE, UKCA, FCC Class A, ICES-3, cULus, CB, CCC, BIS, BSMI, KC-Mark, Mexico Reg.
- Color LCD touchscreen Diagonal "
- 4.3
- Color LCD touchscreen Resolution Width x Height px
- 272 x 480
- Controls
- no final cutter position
- Stacker providing a cutter
- ST400 M
- Material Passage width mm
- 20 - 100
- Material Passage height mm max.
- 1.2
- Material Weight (cardboard) gr/m 2
- 60 - 300
- Material Thickness mm
- 0.05 - 0.8
- Cutting length mm
- 20 - 150
- Performance cuts/min at use of material 1 mm high, no backfeed
- 100
- Limit of collecting mm max.
- 100
- Controls
- no final cutter position, paper jam, stacker cover open, limit of collecting
- Width of a material mm max.
- 120
- Tightening axle core diameter in mm
- 76
- Winding
- outside or inside
- Voltage
- 100 - 240 V, 50/60 Hz
