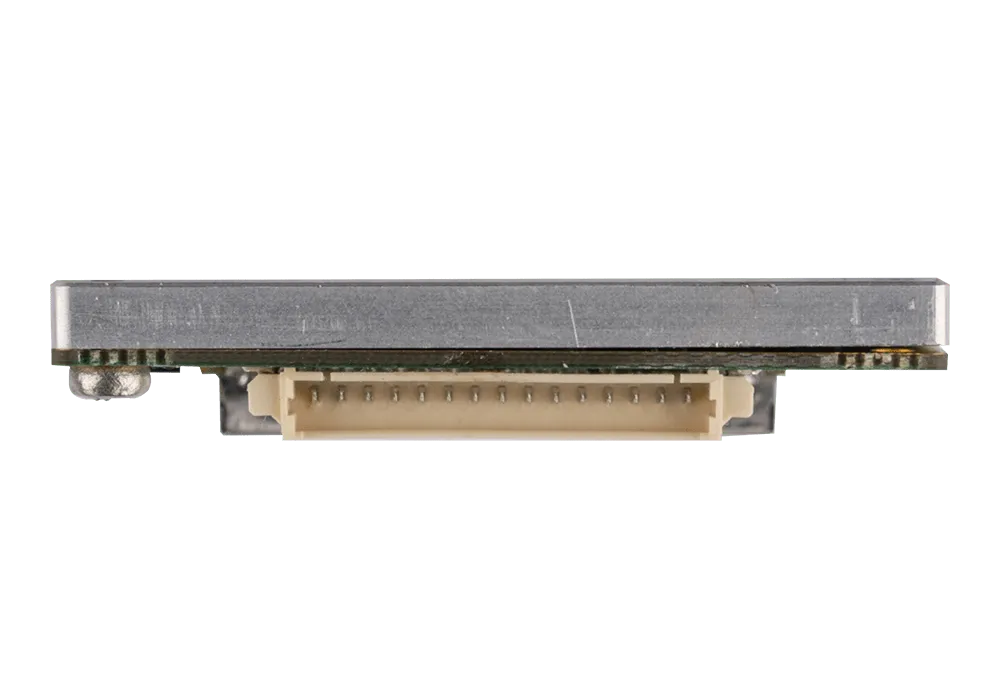

CAEN RFID Lepton 7 x4
The Lepton 7 x4 (Model R7104C), an embedded reader of the easy2read © product line, is an ultra compact reader for low power, high performance RAIN RFID applications.
Specifications
Specifications
- Frequency Range
- 865.600÷867.600 MHz (ETSI EN 302 208 v. 3.4.1) 902÷928 MHz (FCC part 15.247)
- RF Power
- Configurable from 0 dBm to 30 dBm (from 1 mW to 1 W) conducted power
- RX Sensitivity
- -85 dBm – 10%PER, assuming 20 dB antenna RL @ 30 dBm output
- Antenna VSWR Requir
- < 2:1 for optimal performance
- Antenna connector
- 4 MMCX jack
- Frequency Tolerance
- ± 10 ppm over the entire temperature range
- Number of Channels
- 4 channels (compliant to ETSI EN 302 208 v. 3.4.1) 50 hopping channels (compliant to FCC part 15.247)
- Standard Compliance
- EPC Class 1 Gen 2 – ISO18000-63
- Connectivity
- UART Serial Port: Baudrate from 9.6 to 921.6 kbps, default 921.6 kbps Databits: 8 Stopbit: 1 Parity: none Flow control: none 3.3 V I/O voltage level
- I/O Interface
- 4 I/O lines 3.3 V level I out = 8 mA max.
- Charging / power
- 3.2 ÷ 5.25 V DC
- Power Consumption
- 8W max @ RF out = 30 dBm 80mW in idle mode – Ready to receive commands
- Dimensions
- (L)60 x (W)42 x (H)8.1 mm 3 2.36 x 1.65 x 0.32 inches 3
- Operating temperature
- -20 °C to +70 °C
- Weight
- 34 g
