CAEN RFID · Accessory

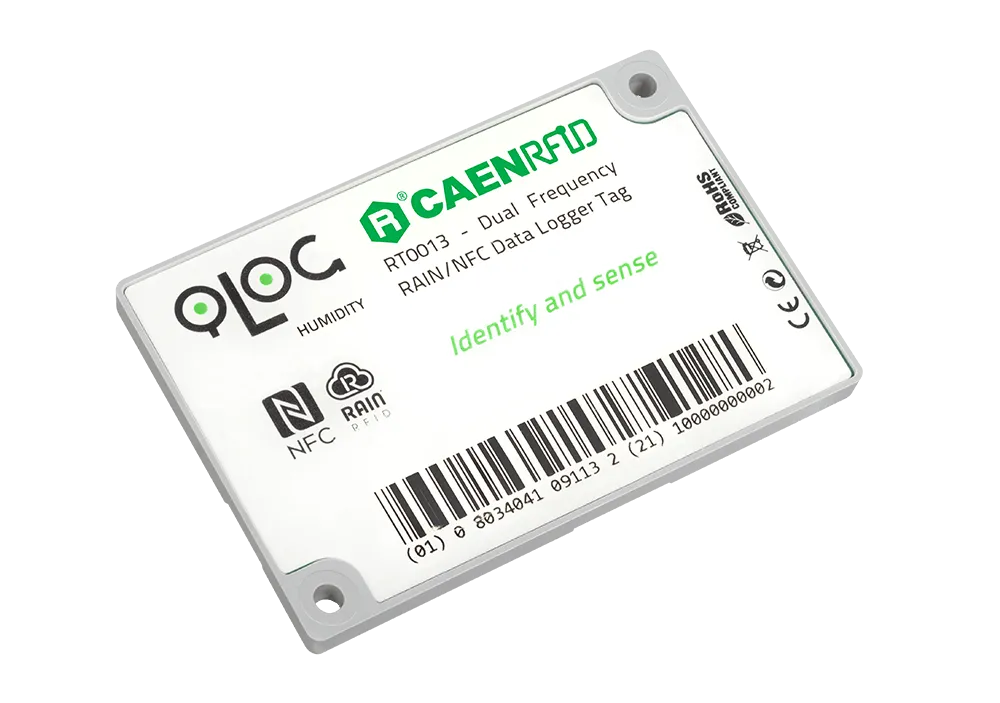

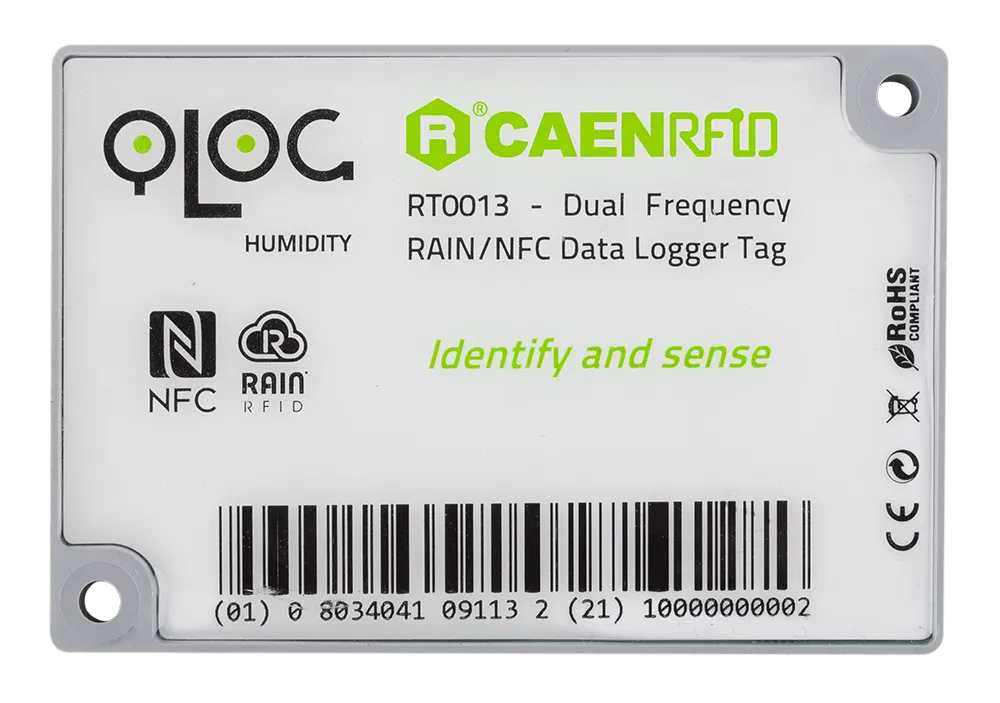

CAEN RFID qLog HUMIDITY
CAEN RFID qLog HUMIDITY (RT0013) is a low cost, semi-passive NFC/RAIN RFID temperature and humidity logger that allows to monitor temperature and humidity sensitive products. The combination of the high resolution sensor, the large memory size and the standard NFC/RAIN RFID interfaces permit to realize effective track and trace solutions for the cold-chain.
- Battery1 year typical (depending on usage and operating temperature) Li/MnO2 Model Renata CR2430SN
- SealingIP68
Specifications
Specifications
- Frequency Range
- – NFC/HF: 13.56 MHz – RAIN/UHF: 860÷930 MHz
- RFID Protocols
- – NFC/RFID ISO 14443 Type A Interface – RAIN : EPC Class 1 Gen 2 – ISO18000-63
- Tag Type
- Semipassive
- Data Points
- Up to 4096 samples
- Temperature Range
- -30 °C to +70 °C
- Temperature Accuracy
- ±0.5 °C
- Humidity Range
- 0 to 100% relative humidity range
- Humidity Accuracy
- ± 3.5% rH, 20 to +80% rH
- Monitoring Time Span
- Up to 5 years
- Time Accuracy
- <0.02% error (typical)
- Scan range / decode distances
- – NFC/HF: up to 5 cm. – RAIN/UHF: up to 5 mt. In free air @ 2W ERP
- Available Memory
- Up to 160 bits in EPC memory bank and up to 448 bits available for user
- Monitoring Delay Option
- Up to 18 hours
- Features
- – Multiple configurable sampling interval – Humidity and temperature histogram function – Configuration and start accessible both from NFC and RAIN interface – Samples download accessible both from NFC and RAIN interface – User accessible memory shared between NFC and RAIN
- Alarms
- – Multiple configurable high and low temperature/humidity thresholds – Estimated Time of Arrival – Battery Level
- Battery / runtime
- 1 year typical (depending on usage and operating temperature)
- Battery / runtime
- Li/MnO2 Model Renata CR2430SN
- IP / sealing
- IP68
- Enclosure Material
- ABS
- Dimensions
- – (W)92 x (L)63 x (H)6.5 mm 3 max. – 3.62 x 2.48 x 0.25 inches 3
- Weight
- 35 g.
