CAEN RFID · Accessory
CAEN RFID WANT021IP

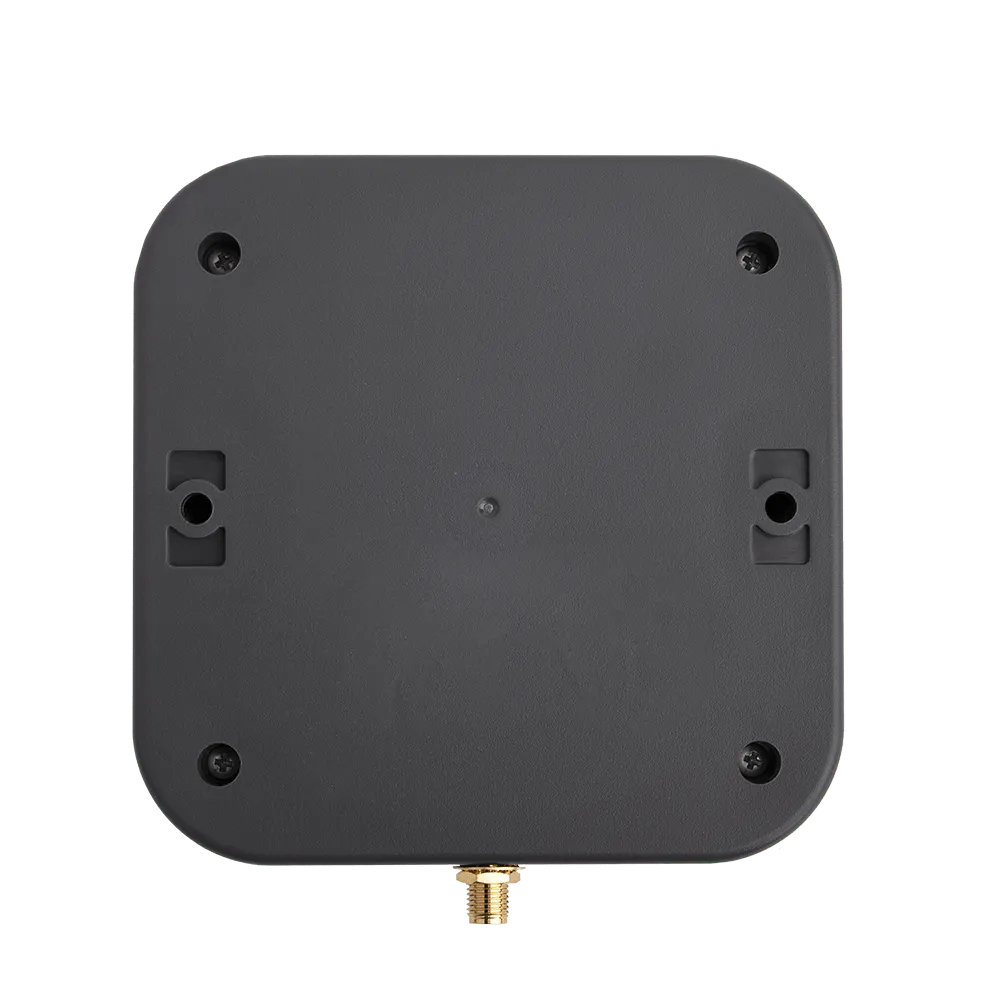

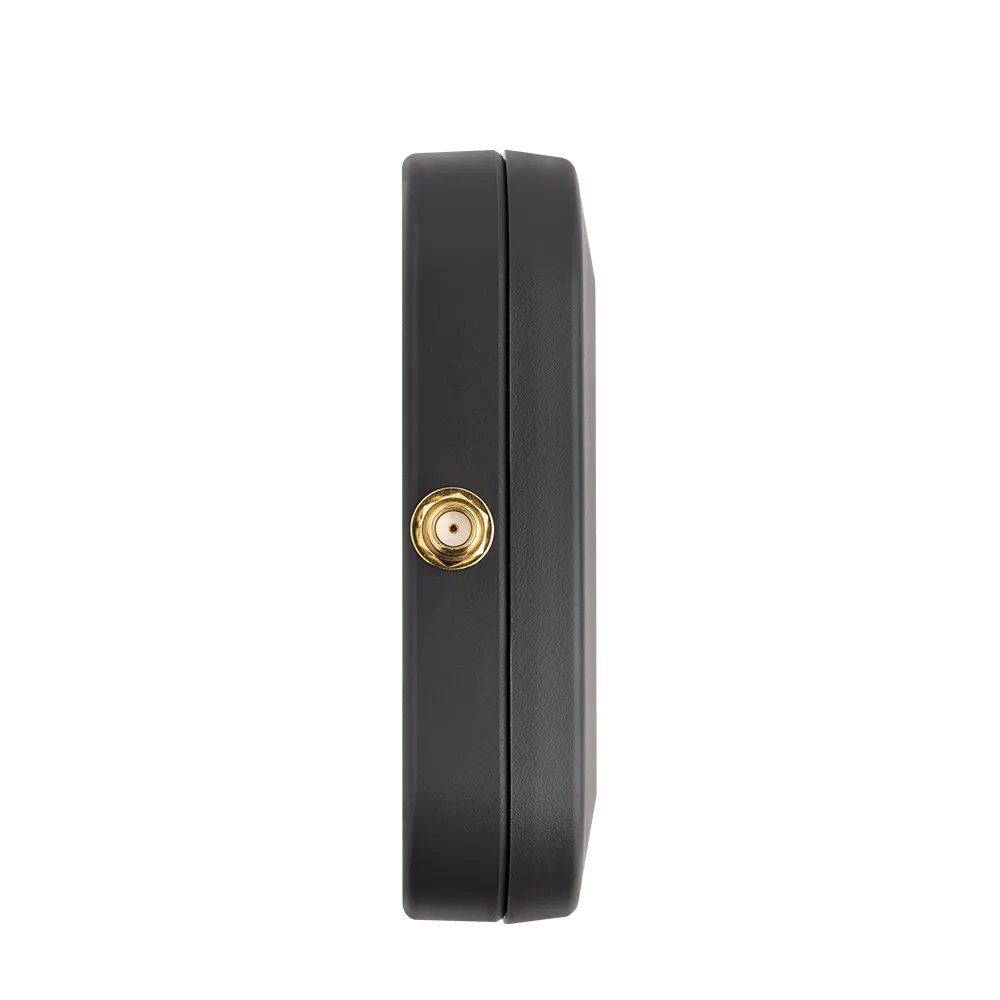

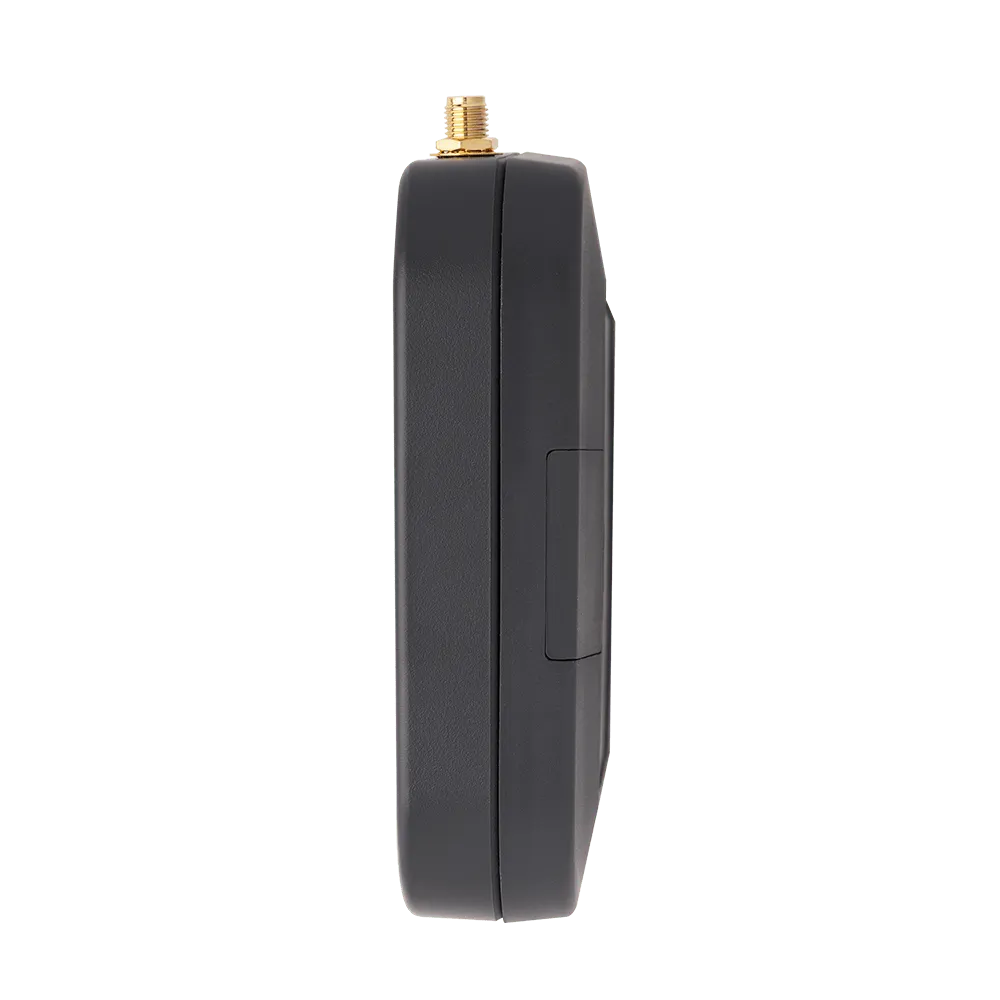

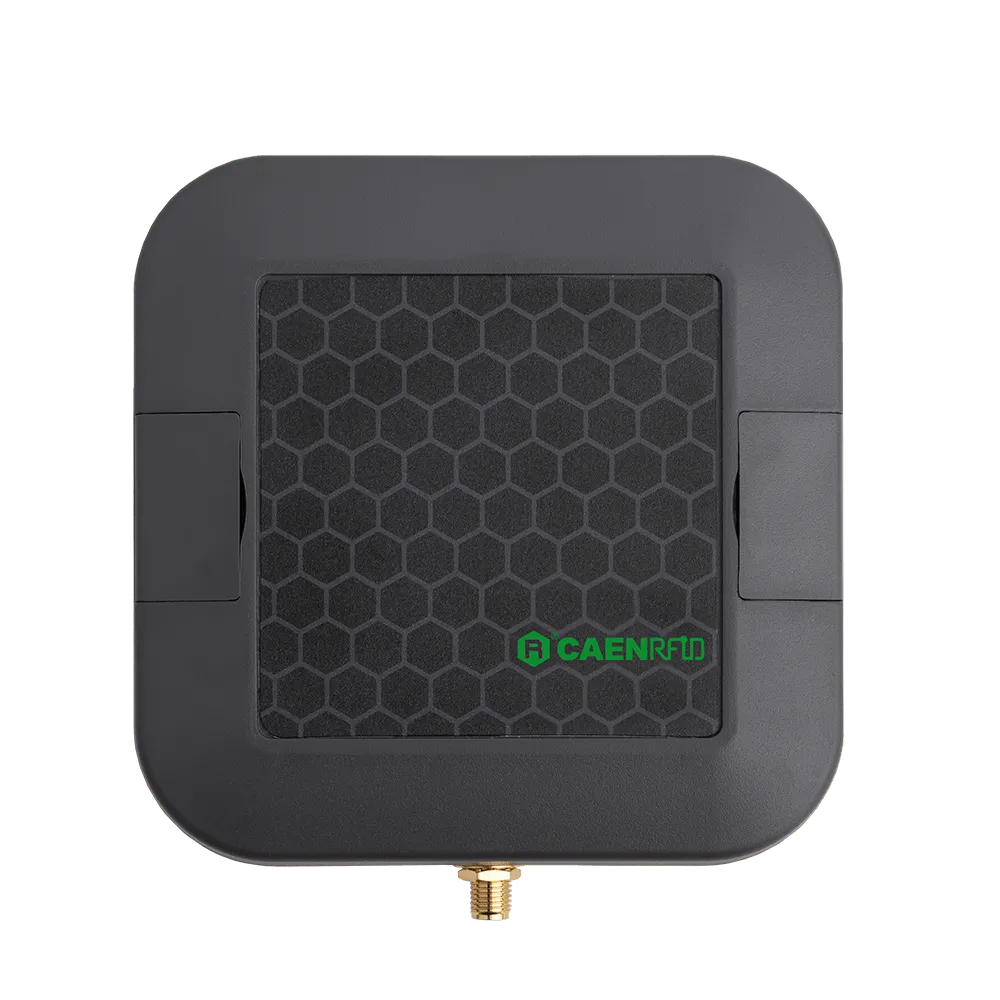

The QuadIP is a medium-short range RAIN RFID antenna in a compact and robust form factor. The QuadIP antenna is well suited for building small RFID gates, read point for access control or to be installed on conveyors in industrial environments.
- SealingIP67
Specifications
Specifications
- Frequency Range
- 902 ÷ 928 MHz (FCC part 15.247)
- Antenna polarization
- Circular (RHCP)
- Antenna gain
- 0.2dBi typ.
- Axial Ratio
- 1dB typ.
- Dimensions
- – (L) 100 x (W) 100 x (D) 25 mm3 – 3.94 x 3.94 x 0.98 inch3
- Impedance
- 50 Ohm
- VSWR
- < 1.5:1
- RF Connector
- SMA jack female, straight
- IP / sealing
- IP67
