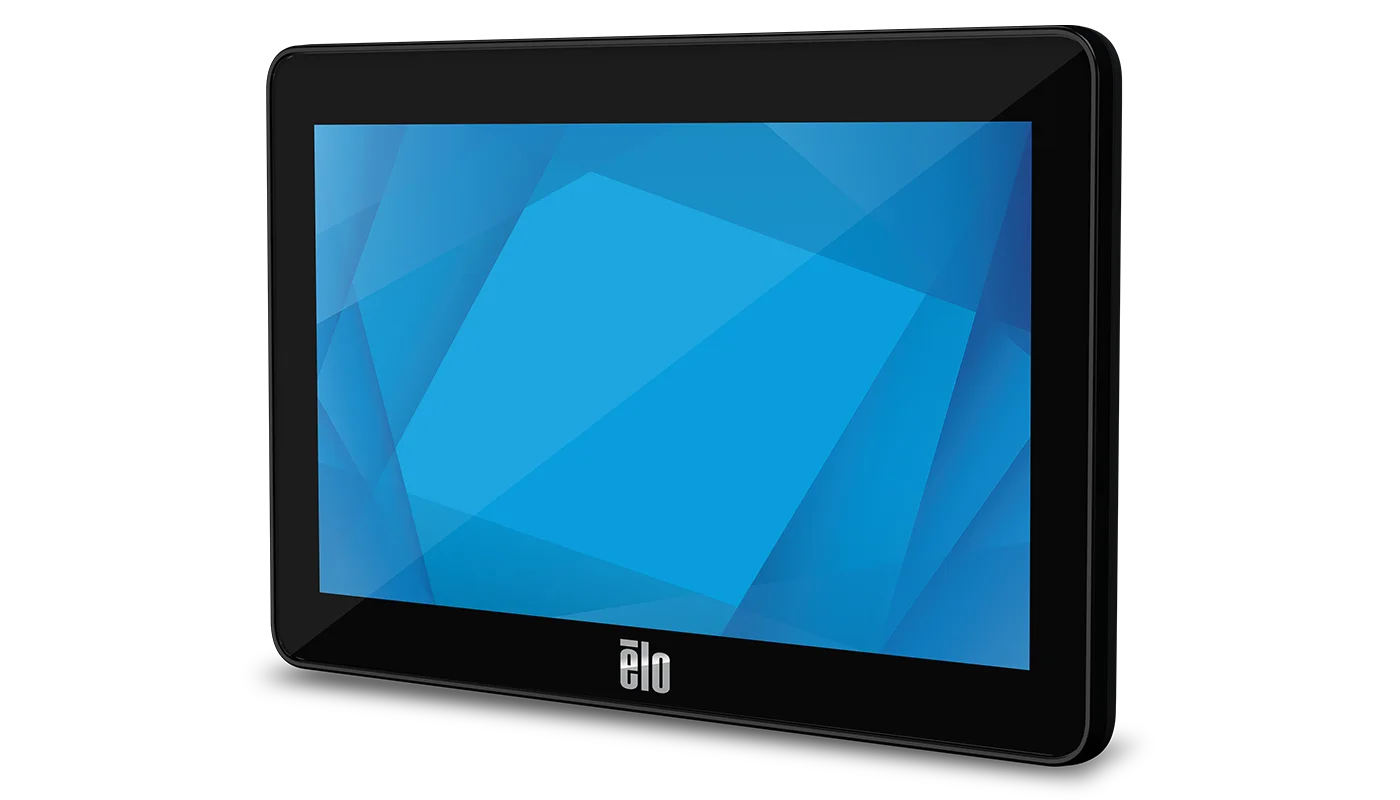

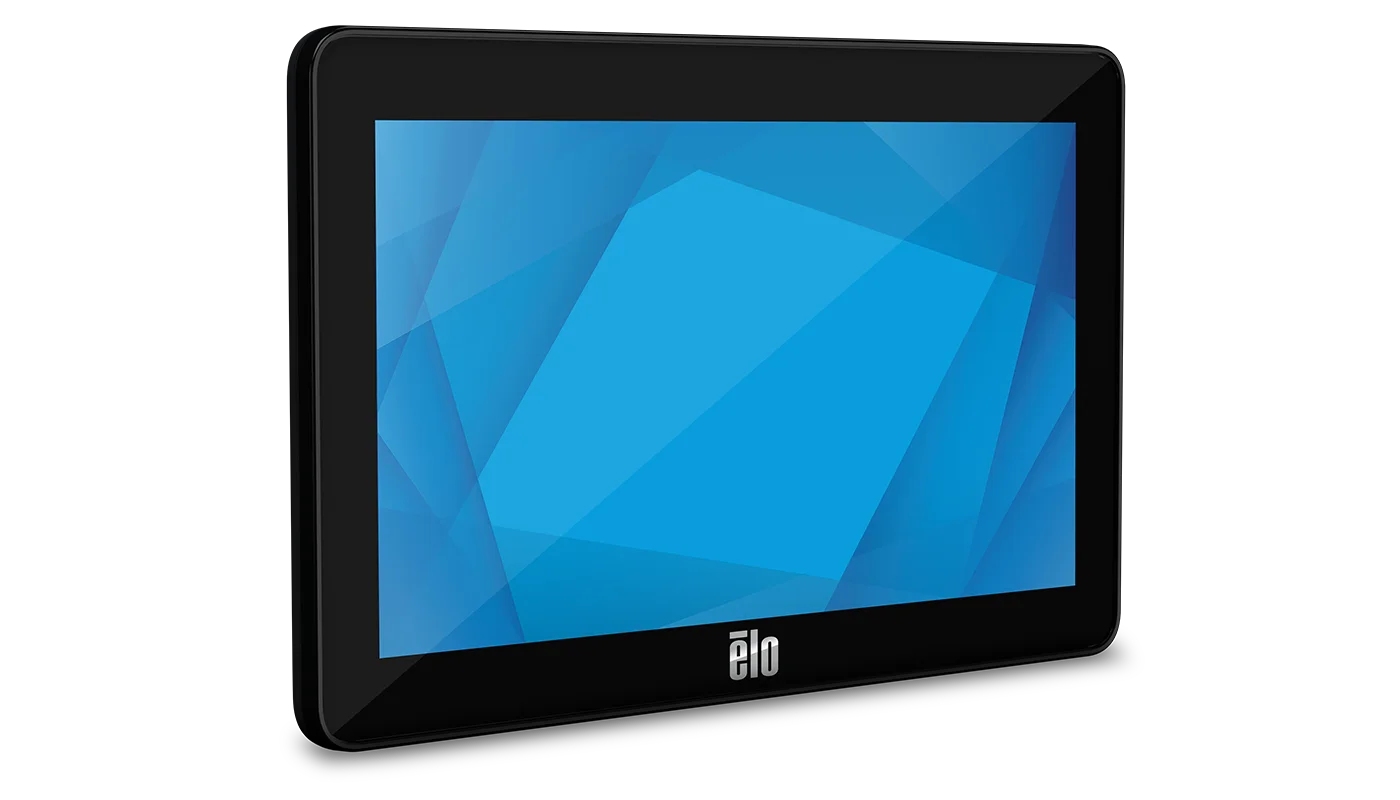

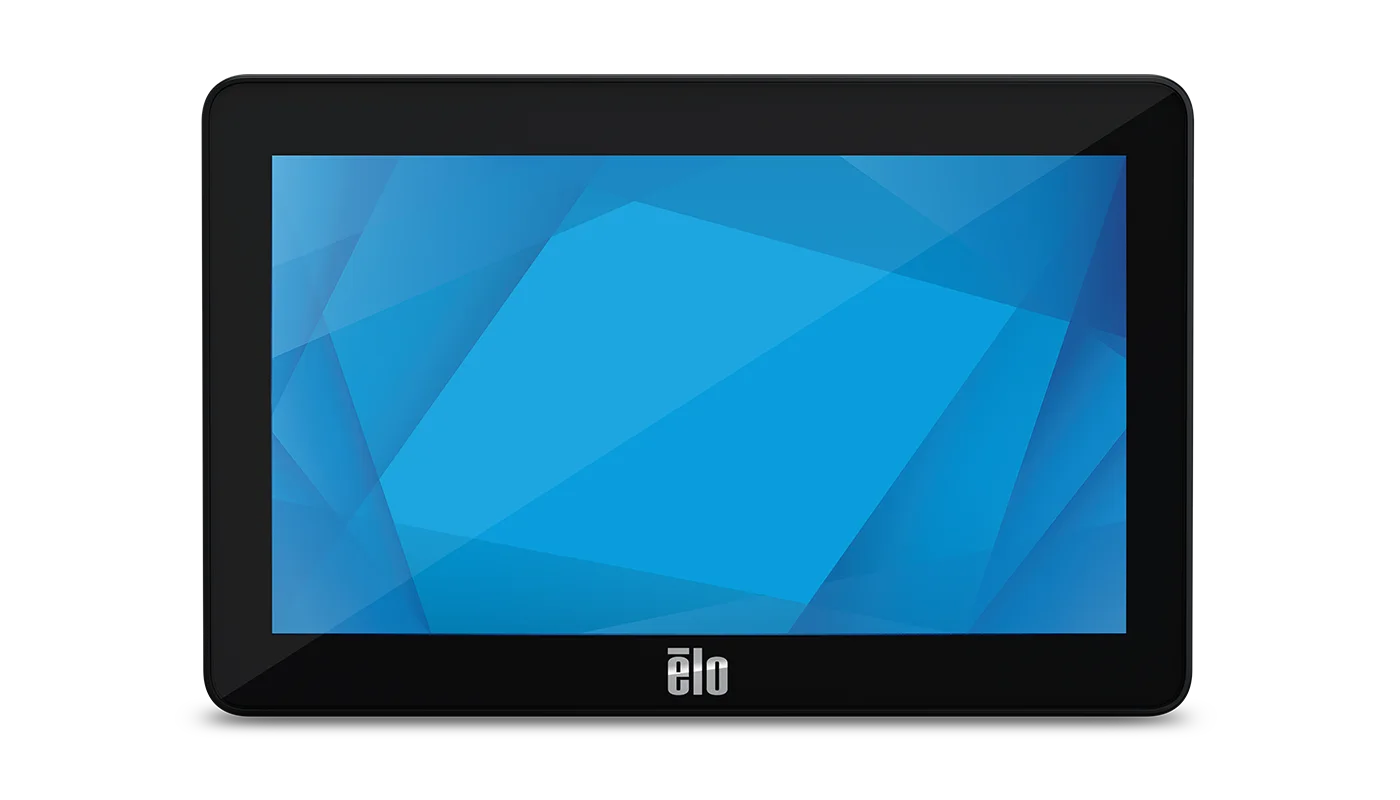

Elo Touch 0702L 7" Touchscreen Monitor
The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integra
- Display7'' diagonal, Active matrix TFT LCD (LED)
- SealingIP65
Datasheet at Elo Touch Product page at Elo Touch
Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps
Overview
The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.
- Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again.
- Every business is different. Whether you need a customer-facing, point-of-sale touchscreen to display a transaction or an interactive display in a restaurant to enable guests to view the menu and make their orders, the 0702L provides the features to meet your installation needs with a modern, sleek aesthetic.
- Customers demand a seamless shopping experience from the moment they enter the store through check-out. From stands and pole mounts to shelf mounts, wall mounts and 3rd-party VESA mounts, the touchscreens can be integrated with ease.
- The brilliant touchscreens with Elo's industry-leading TouchPro™ PCAP technology offer wide viewing angles with impeccable image clarity, resolution and light transmission for accurate touch response and vivid images. Capable of handling up to 10 simultaneous touches, the 02-Series touchscreen monitors provide an enhanced tablet-like experience.
- When a technology outage happens, retailers, restaurants and business operators want to know the right person to call, right away. EloCare offers services you can count on in case the unexpected happens.
Best for: Kitchen Display Systems
Specifications
Technical
- Part Number(s)
- TouchPro PCAP (Worldwide) - E796382
- Enclosure Color
- Black
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Diagonal Size
- 7'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 5:3
- Active Area
- 6.07'' x 3.38'' / 154.08 mm x 85.92 mm
- Resolution
- 800 x 480
- Other Supported Resolutions
- 800 x 480 60 Hz
- Viewing Angle
- Horizontal: 75° or 150° total / Vertical: 55°/65° or 120° total
- Number of Colors
- 16.2 million
- Brightness (typical)
- Panel: 500 nits; TouchPro PCAP: 430 nits
- Response Time-total (typical)
- 25 msec
- Contrast Ratio
- 500:1
- Touch Interfaces
- USB
- Surface Treatment
- Anti-glare
- I/O Ports
- 1 x Micro USB
- Input Video Frequency
- Horizontal: 31.5K KHz; Vertical: 60Hz
- Power
- Input connector: Micro-USB; Input signal specifications: 5 V ±5%
- Power Consumption (Typical)
- Monitor + adapter; ON: 3.7W; SLEEP: 0.9W; OFF: 1.9W
- Monitor Dimensions (without Stand)
- 4.61" x 7.11" x 0.7"' / 117.22 mm x 180.58 mm x 17.7 mm
- Shipping Box Dimensions
- 6.69" x 9.13" x 3.74" / 170 mm x 232 mm x 95 mm
- Weight (Unpackaged)
- 0.77 lbs / 0.35 kg
- Weight (Packaged)
- 1.43 lbs / 0.65 kg
- Operating Temperature
- 0°C to 40°C / 32°F to 104°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 20% to 80%; Storage: 10% to 95%
- MTBF
- 50,000 hours demonstrated
- Mounting Options
- VESA 75mm x 75mm
- Other Features
- IK06 impact compliant
- Warranty
- 3-year
- Extended Service Options
- 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
- Regulatory approvals and declarations
- Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; United States FCC, UL; Japan VCCI; International CB; Australia RCM; Mexico NOM; Korea, KCC; Taiwan BSMI
- Ingress Protection
- IP65
- What's in the Box
- Touchmonitor; Micro USB Y-cable; Quick Install Guide
- Stands, Mounts & Kits
- Elo Backpack® - Elo P/N: E611864; Elo Backpack® 3.0 - Elo P/N: E901355; Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104; Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; 2.5m Cable Kit - Elo P/N: E796577
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
