Elo Backpack for Linux by Elo

Elo Touch · Accessory

Elo Touch Elo Backpack for Linux

Enterprise Linux in a box. Scale your deployments.

  • Operating systemLinux Debian 10

Datasheet at Elo Touch Product page at Elo Touch

Warning: This device is not compatible with Raptool apps. But you can use the Raptool Integration Server to send and receive data from the device to any other system.

Overview

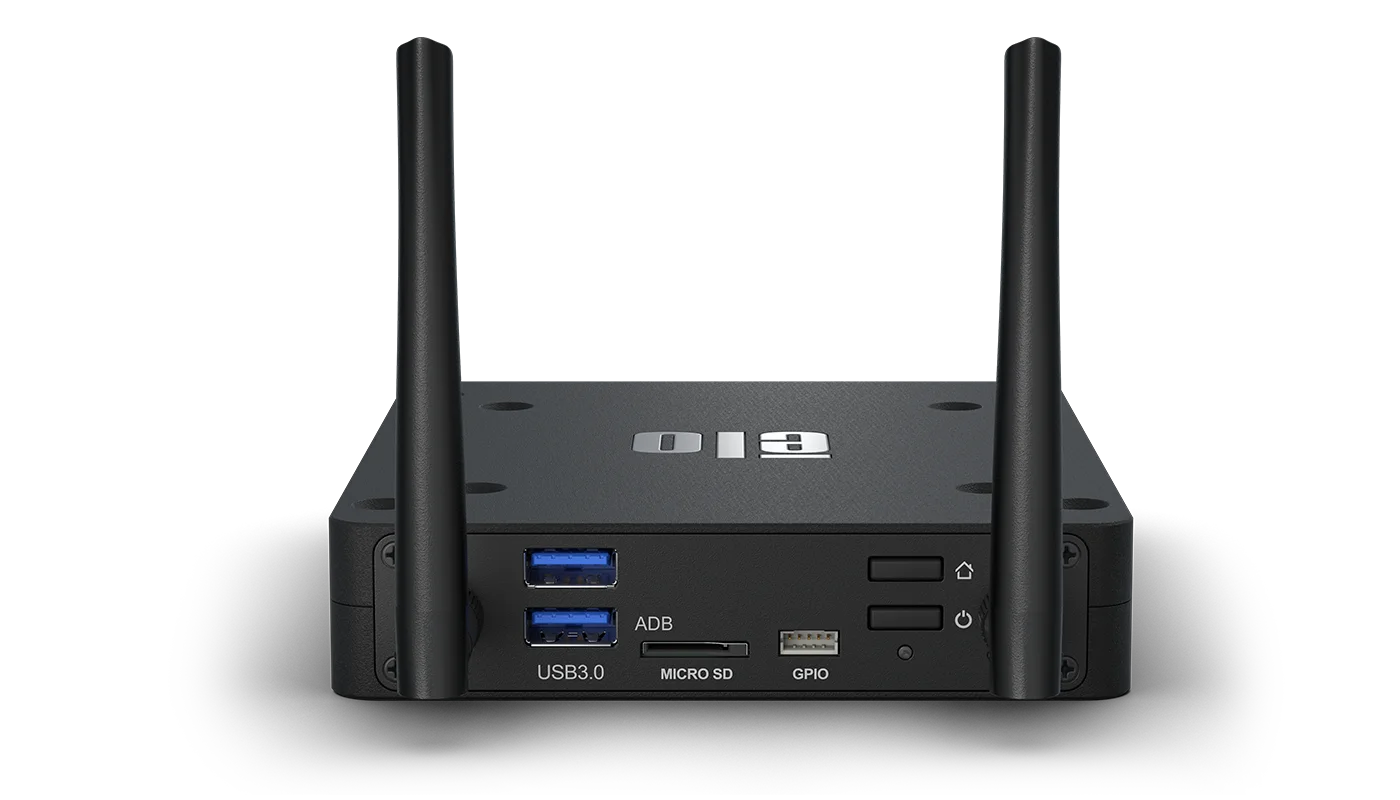

The Elo Backpack is a powerful, commercial-grade Linux PC designed to simplify scaling Elo’s enterprise Linux platform across sizes and form factors. Simply pair the Elo Backpack Linux device with any Elo touchscreen from 7-65 inches to create a consistent deployment that is cost effective and optimized for commercial use.

  • With decades of development and customizations made to support global enterprise customers, Elo’s Linux-based platform offers Linux device drivers, uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors.
  • From digital signage and self-service kiosks to point of sale, kitchen display systems (KDS) and automation controls, the Elo Backpack Linux PC offers the connectivity, performance and durability to power almost any application.
  • Purpose-built to accommodate compact spaces, the Elo Backpack Linux device offers a small footprint in both size and weight.
  • Easily secure the Elo Backpack Linux PC to any counter or in a kiosk with the built-in 75mm or 100mm VESA mount.
  • Equipped with Rockchip 6-core processor and your choice of Debian 10 distributions or newer, the Elo Backpack Linux PC delivers the performance your business needs.

Best for: Kitchen Display Systems · Computers for Kitchen Display Systems · Conference Room Technology · Conference Room Accessories

Specifications

Technical

Part Number(s)
E143585
Enclosure Color
Black
Processor
Rockchip RK3399
Memory (RAM)
4GB LPDDR4
Storage
32GB
Wireless
802.11a/b/g/n/ac + Bluetooth 5.0; Via external antenna
I/O Ports
HDMI; 4x USB 3.0 support; USB-C output; Micro SD slot; GPIO; Ethernet 1x LAN (Gigabit); DC in
OS
Linux Debian 10
Resolution
USB-C: 3840 x 2160 @60fps; HDMI: 3840 x 2160 @60fps
Power Supply
AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; power adapter (included in accessory box)
Power Consumption (Typical)
On: 3.7W; Off: 0.28W; Sleep: 3.18W
Mounting Options
VESA 75mm and 100mm
Dimensions
4.5" x 5.5" x 1.0" / 114 mm x 139 mm x 25.4 mm
Shipping Box Dimensions
Individual System: 14.6" x 8.2" x 2.4" / 371 mm x 208 mm x 62 mm; 8 systems/carton: 17.4" x 10.6" x 16.3" / 441 mm x 270 mm x 413 mm
Weight (Unpackaged)
0.82 lbs / 0.37 kg
Weight (Packaged)
Individual System: 0.82 lbs / 0.37 kg; 8 systems/carton: 22.38 lbs / 10.15 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated
Regulatory approvals and declarations
UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia)
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E895914; 4 year warranty coverage - Elo P/N: E896120; 5 year warranty coverage - Elo P/N: E896322; 2 year warranty coverage + AUR - Elo P/N: E896513; 3 year warranty coverage + AUR - Elo P/N: E896699; 4 year warranty coverage + AUR - Elo P/N: E896903; 5 year warranty coverage + AUR - Elo P/N: E897104
What's in the Box
Backpack 4; North American Power Cable; European Power Cable; 1x Power Brick with locking screw; 2x Antenna; Quick Install Guide
Optional Accessories
Replacement power brick kit - Elo P/N: E682057

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status
Current
Status basis
Listed as a current product on elotouch.com; no end-of-life notice found on the product page
