Elo Touch · POS computer

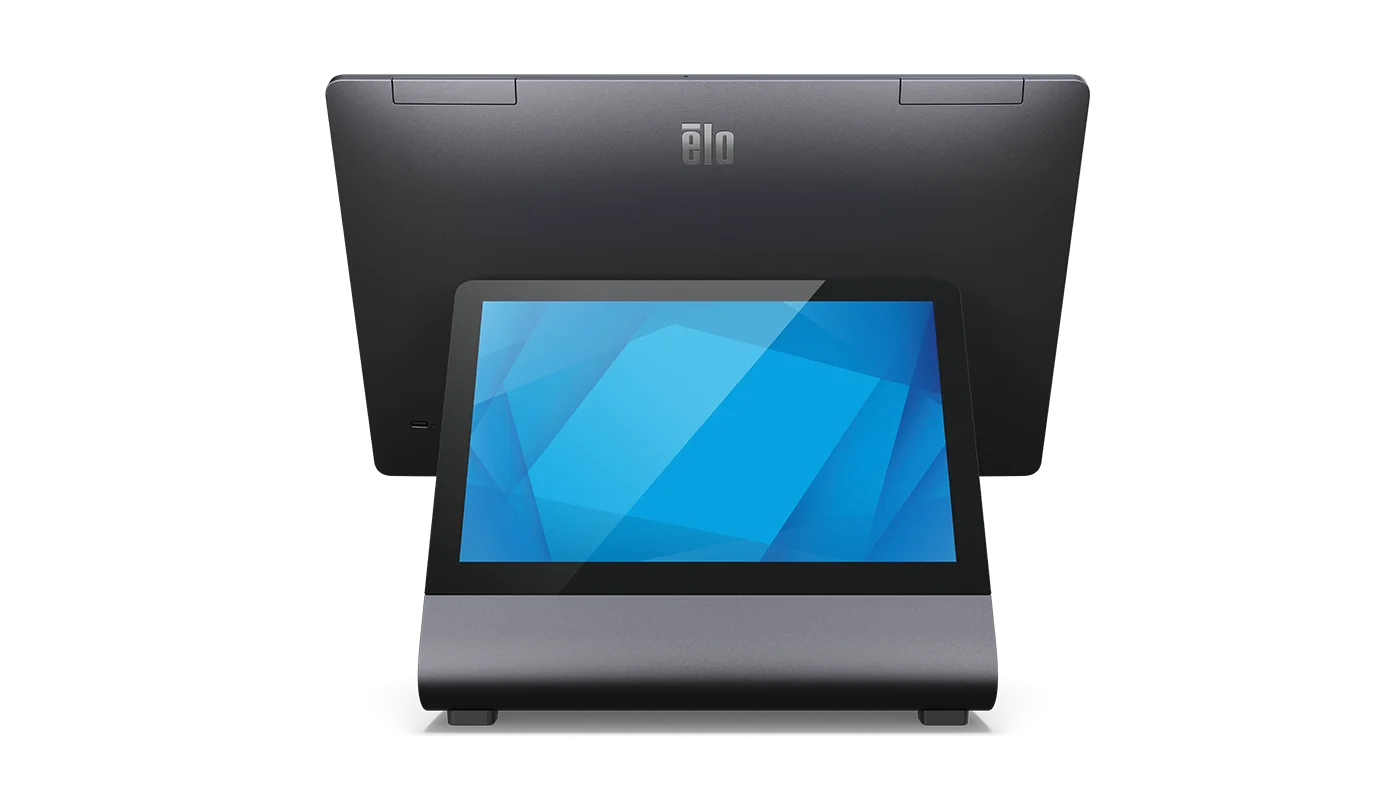

Elo Touch EloPOS Z30 with Intel
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connect
- Operating systemNo OS; Windows 10 IoT Enterprise LTSC 64-bit
- Display15.6'' diagonal, Active matrix TFT LCD (LED)
Datasheet at Elo Touch Product page at Elo Touch
Runs Raptool apps in the Raptool Client, with access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Overview
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and your choice of Windows 10, ChromeOS Flex and Linux, the EloPOS Z30 brings one of the sleekest form factors to the market.
- Integrated I/O From payment devices and scanners to a cash drawer and printer, there is room for everything you need at point of sale.
- Conceal Your Cables Keep your counter clean with the integrated cable routing system.
- Single Cable Connection Connect a secondary display with a single USB‑C cable that provides touch, video and power.

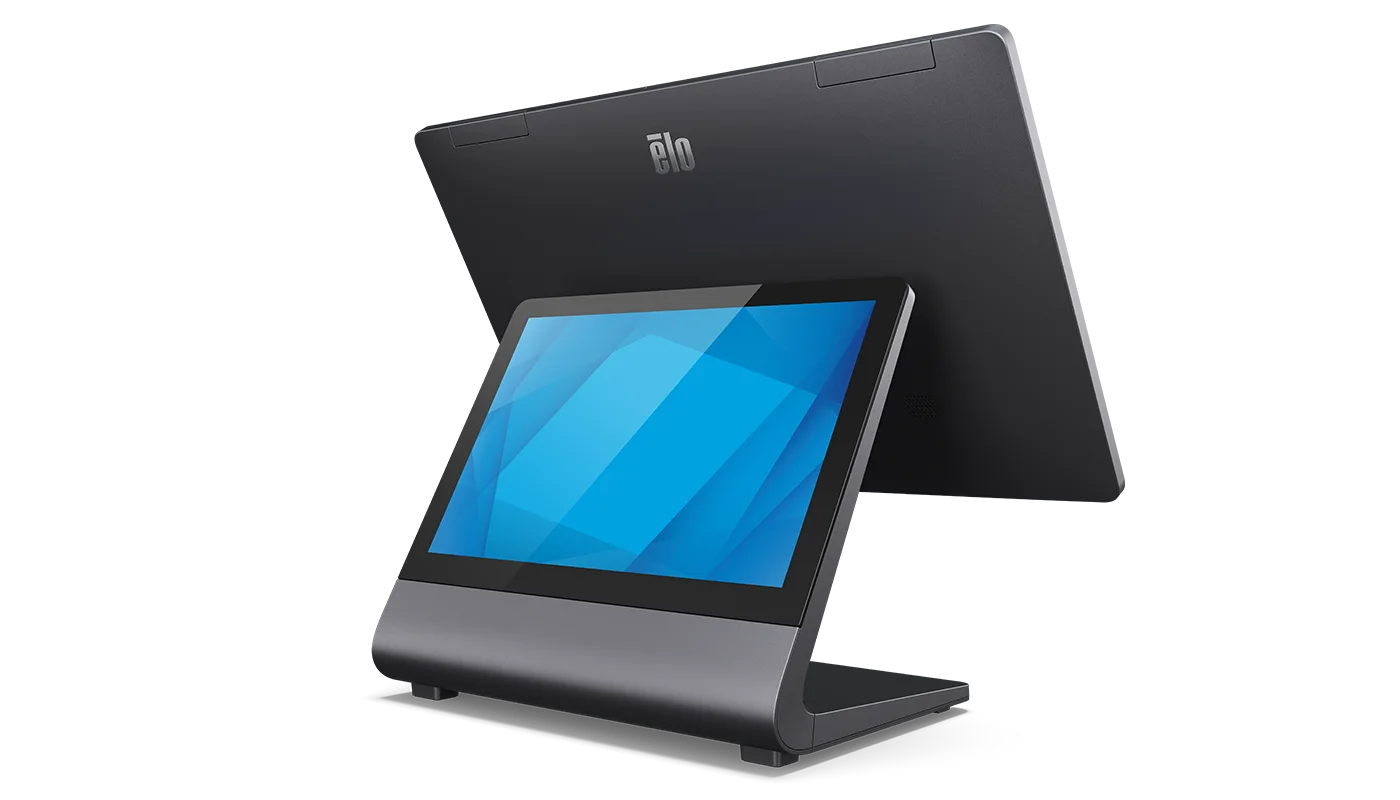

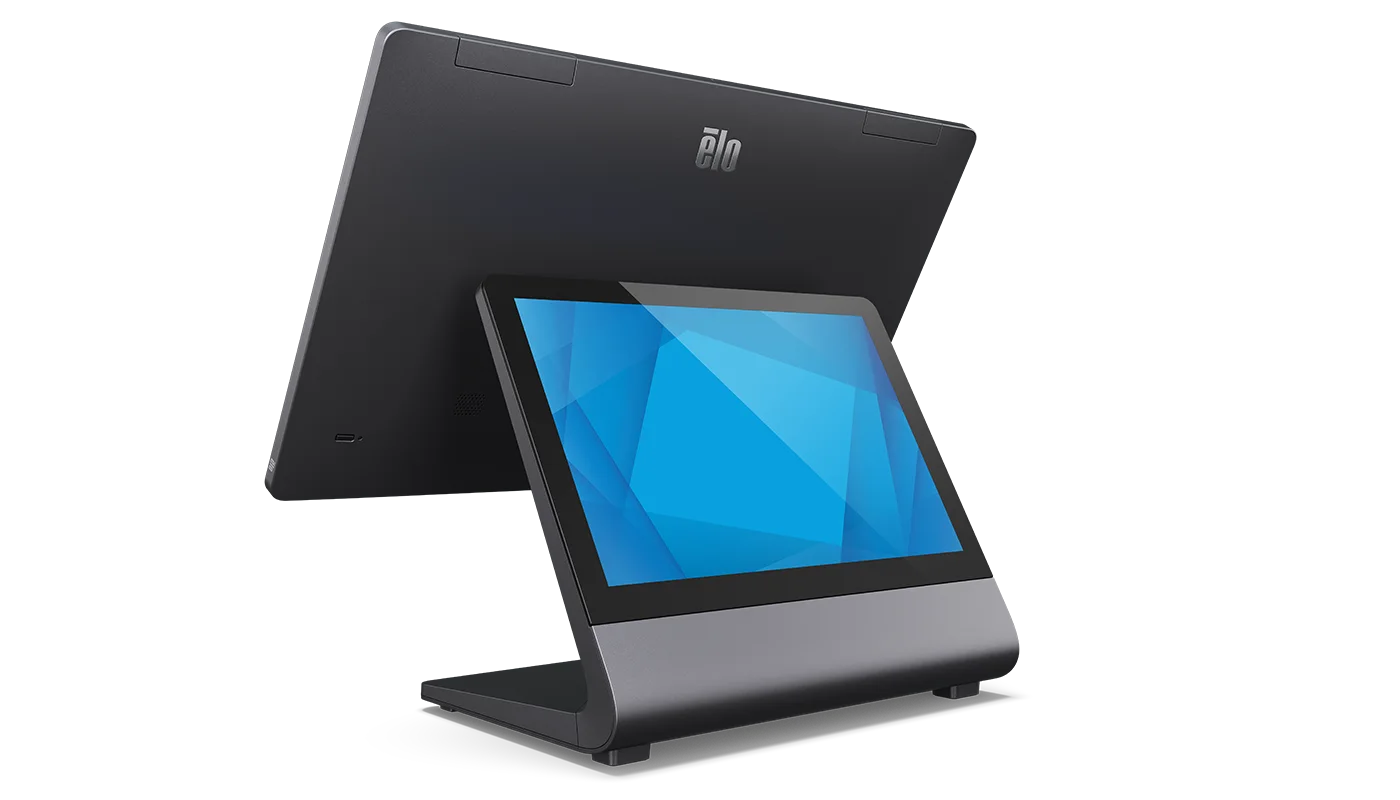

- With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.
- The Z30 is designed to stay in place without being secured, but if permanent mounting is required, easily affix your POS terminal to any counter or surface.
Best for: POS Systems for Restaurants · Retail POS Systems · Windows Retail POS Systems · Linux Retail POS Systems
Specifications
Technical
- Part Number(s)
- EloPOS Z30, No OS, 8GB RAM, 128GB SSD, with CFD: E984463; EloPOS Z30, Win 10, 8GB RAM, 128GB SSD, with CFD: E984657; EloPOS Z30, Win 11/10, 8GB RAM, 256GB SSD, with CFD: E425383; EloPOS Z30, Win 11/10, 16GB RAM, 256GB SSD, with CFD: E570898; EloPOS Z30, No OS, 8GB RAM, 128GB SSD, without CFD: E984089; EloPOS Z30, Win 10, 8GB RAM, 128GB SSD, without CFD: E984275; EloPOS Z30, Win 11/10, 8GB RAM, 256GB SSD, without CFD: E425178; EloPOS Z30, Win 11/10, 16GB RAM, 256GB SSD, without CFD: E571098
- Enclosure Color
- Dark Gray Metallic
- Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
- Processor
- Intel Elkhart Lake J6426
- Graphics
- Intel UHD Graphics
- BIOS
- AMI
- Memory (RAM)
- 8GB 3200MHz DDR4 SO-DIMM on 1 slot (Available up to 32GB in one slot)
- Storage
- 128GB M.2 NVME SSD; (GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less)
- OS
- No OS; Windows 10 IoT Enterprise LTSC 64-bit
- OS Languages
- Windows 10 – 36 Language groups
- Control Buttons
- Power button
- Diagonal Size
- 15.6'' diagonal, Active matrix TFT LCD (LED)
- Aspect Ratio
- 16:9
- Active Area
- 13.55" x 7.62" / 344 mm x 194 mm
- Resolution
- 1920 x 1080 @ 60Hz
- Number of Colors
- 16.2 million
- Brightness (typical)
- LCD Panel: 300 nits; TouchPro PCAP: 255 nits
- Response Time-total (typical)
- 25 ms
- Contrast Ratio
- 1000:1
- Viewing Angle
- Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
- I/O Ports
- I/O ports on display:; USB-C Connector; Supports USB 2.0/3.0, DP output; (Requires 20V/40W USB-C Power Delivery 2.0 if not using IO Hub for power); I/O ports on stand:; DC in Jack; 4x USB3.0; LAN RJ45 (Gigabit) (wo Wake on Lan at S5 support); RJ12 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by BIOS); Powered USB 24V; Full-function USB-C (Power up to 27W, USB 3.0, Display Port) (non-CFD model only)
- Integrated Customer-Facing Display
- Size - 10.1 inch; Resolution - 1200 x 1920; Active Display Area - 5.33" x 8.53" / 135.36 mm x 216.58 mm; Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total; Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits; Number of Colors - 8-bit (16.7M); Touch Technology - TouchPro PCAP; Sealing - Touchscreen sealed to LCD; Number of Touches - 10
- Webcam
- 8MP; Max Resolution: 1920x1080 30fps; Auto Focus
- Wireless
- 802.11 a/b/g/n/ac/ax 2.4GHz and 5GHz and 6GHz
- Bluetooth
- Bluetooth 5.2
- Antenna
- 2T2R design
- Microphone
- Digital Microphone
- Speakers
- 2x 2W internal speakers
- Trusted Platform Module (TPM)
- TPM 2.0
- Power Supply
- External 24VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 150W
- Power Consumption (Typical)
- ON With CFD: 40W; ON Without CFD: 32W; SLEEP:
- Dimensions
- 14.3" x 17.6" x 7.10" / 362.8 mm x 298.7 mm x 180.4 mm
- Shipping Box Dimensions
- 18.11" x 10.63" x 15.71" / 460 mm x 270 mm x 399 mm
- Weight (Unpackaged)
- 8.8 lbs / 4 kg
- Weight (Packaged)
- 14.1 lbs / 6.4 kg
- Operating Temperature
- 0°C to 35°C / 32°F to 95°F
- Storage Temperature
- -20°C to 60°C / -4°F to 140°F
- Humidity
- Operating: 10% to 90%; Storage: 0% to 95% (38.7℃ max wet bulb temperature)
- MTBF
- 50,000 hours demonstrated
- Regulatory approvals and declarations
- UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA
- Real-Time Clock
- CR2450 lithium metal battery
- Warranty
- 3-year
- Extended Service Options
- 4 year Warranty Coverage – Elo P/N: E819598; 5 year Warranty Coverage – Elo P/N: E819795; 3 year Warranty Coverage + AUR – Elo P/N: E820186; 4 year Warranty Coverage + AUR – Elo P/N: E820388; 5 year Warranty Coverage + AUR – Elo P/N: E820582
- What's in the Box
- EloPOS Z30; North American Power Cable; European Power Cable; Quick Install Guide; 150W Power Brick; 2x Zip Ties; M4x8 flat head screw; 2x M4x6 mm Flat head screw (Backup); Base Plate – for mounting to a countertop
- Stands, Mounts & Kits
- 0702L - Elo P/N: E796382; 1002L - Elo P/N: E155834; 1002L - Elo P/N: E324341; 1302L - Elo P/N: E683595; 1502L - Elo P/N: E125496
Data from elotouch.com product page and its specification table, checked 2026-10-27.
Lifecycle
- Sales status
- Current
- Status basis
- Listed as a current product on elotouch.com; no end-of-life notice found on the product page
