Newland · Accessory

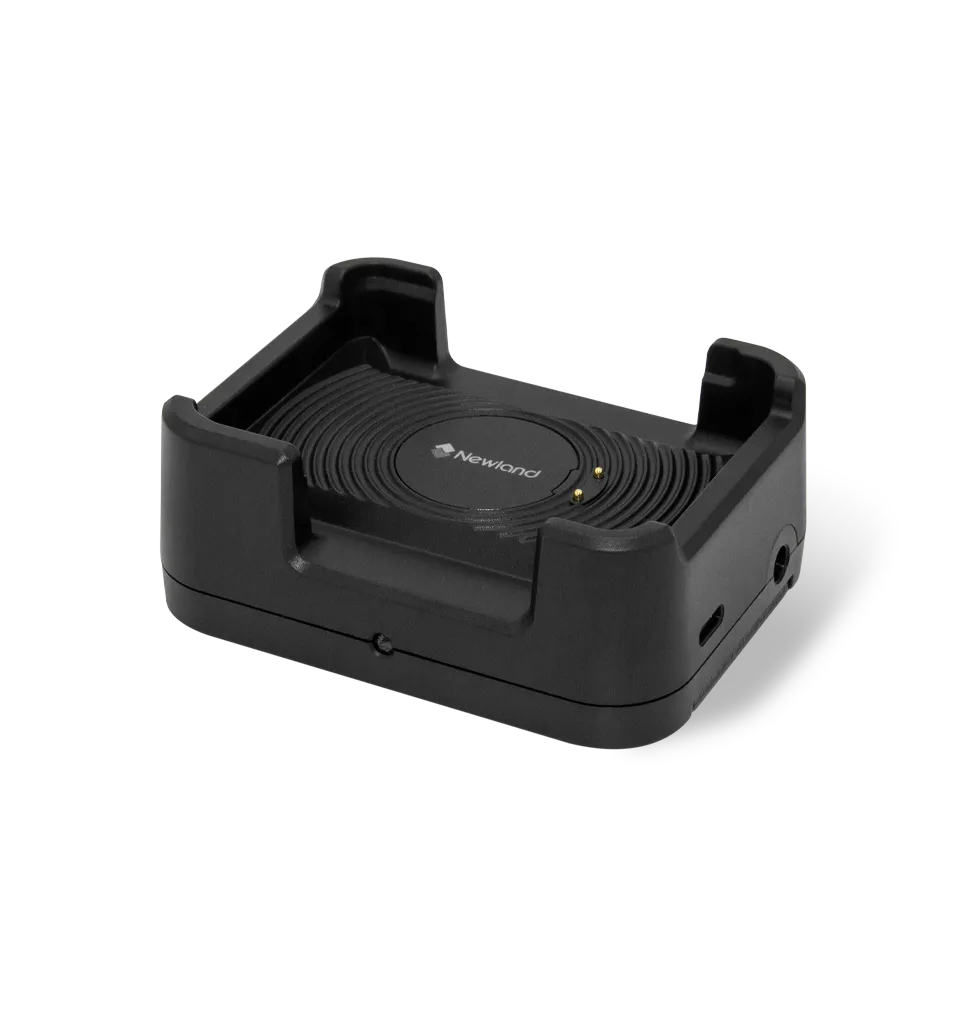

Newland NLS-WCD10-1C Charging Cradle for WD1
Charging Cradle for WD1-W4 (connectable up to 5pcs; no Power Supply included).
- SealingIP30
- Drop1.0m drops to concrete (for six sides, one drop per side) 1.0m drops to concrete (for six sides, one drop…
Specifications
Specifications
- AC Adapter
- DC 19V 3.2A for spliced cradles
- Dimensions
- 90(L)*70(W)*37(H) mm
- Expected Charge Time
- WD1≤3.5H（DC 19V 3.2A）
- Notifications
- LED
- Weight
- 170g
- Drop specification
- 1.0m drops to concrete (for six sides, one drop per side)
- Electro Static Discharge (ESD)
- ±12 kV (air discharge), ±8 kV (direct discharge)
- Humidity
- 5% to 95% (non-condensing)
- IP / sealing
- IP30
- Operating temperature
- 5°C to 45°C (-32°F to 113°F)
- Storage temperature
- -30°C to 60°C (-22°F to 140°F)
- Warranty
- 1 Year
- Part Number
- Description
- NLS-WCD10-1C
- Charging Cradle for WD1-W4 (connectable up to 5pcs; no Power Supply included).
- Dimensions
- 90(L)*70(W)*37(H) mm
- Weight
- 170g
- Drop specification
- 1.0m drops to concrete (for six sides, one drop per side) NLS-WCD10-1C Charging Cradle for WD1 | Page 1 of 2
- Humidity
- 5% to 95% (non-condensing)
- IP / sealing
- IP30
- Operating temperature
- 5°C to 45°C (-32°F to 113°F)
- Storage temperature
- -30°C to 60°C (-22°F to 140°F)
- Warranty
- 1 Year
- Physical
- AC Adapter
- Drop
- 1.0m drops to concrete (for six sides, one drop per side)
- Fits

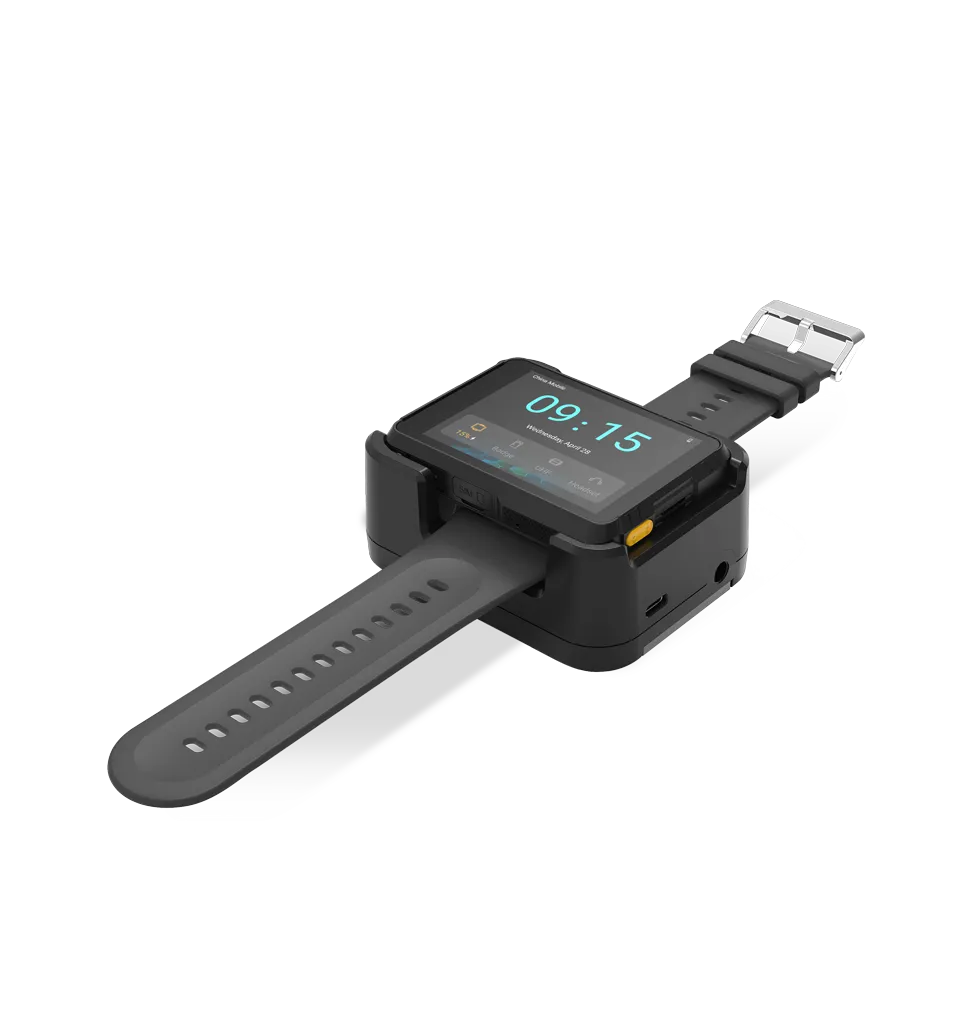

- WD1 II Watch Scanner, Wearables, Ready to boost your operations?
