Elo Touch 1302L 13" Touchscreen Monitor

Display13.3'' diagonal, Active matrix TFT LCD
SealingIPX1 for front side

Datasheet at Elo Touch Product page at Elo Touch

Shows Raptool apps running in the Raptool Client on a connected Android, iOS, Windows or Mac device. Scanner apps

Overview

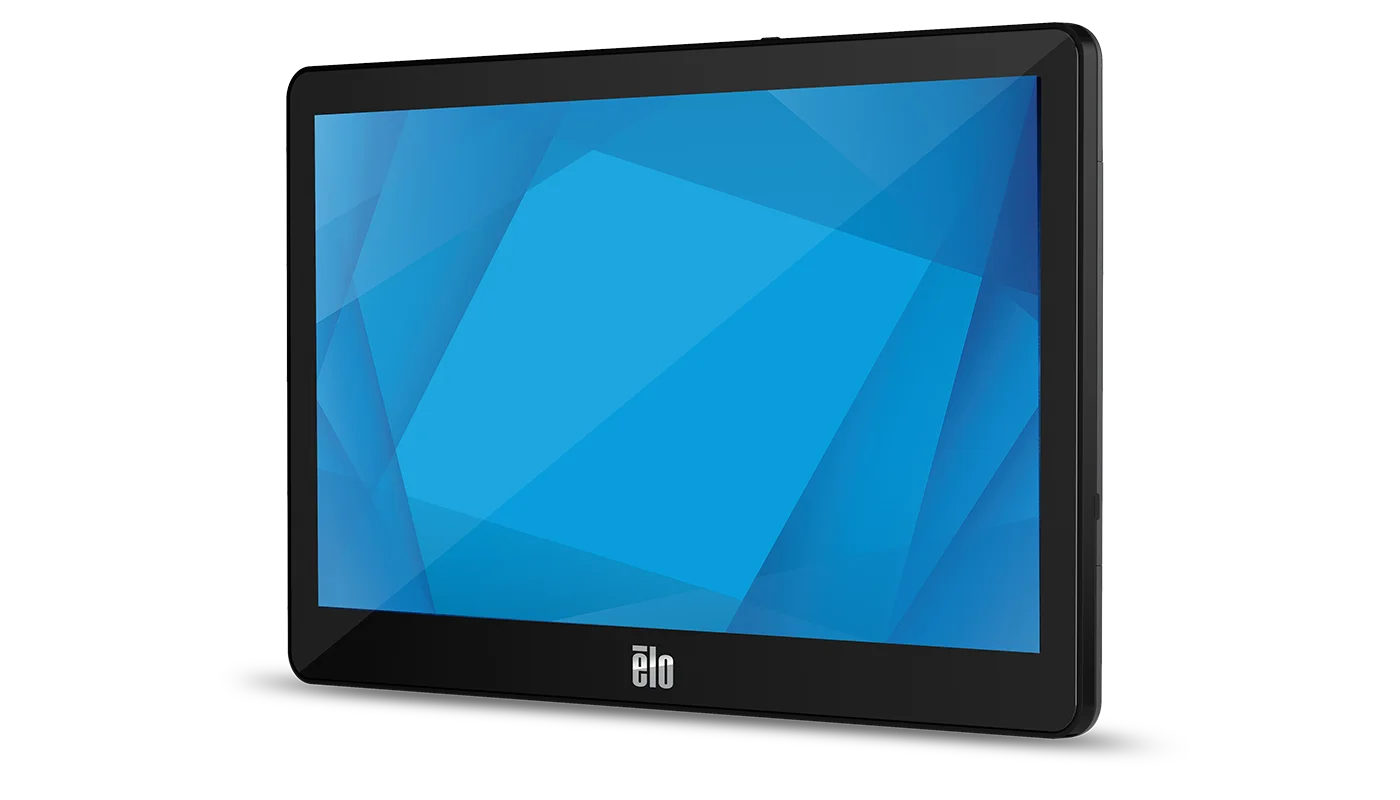

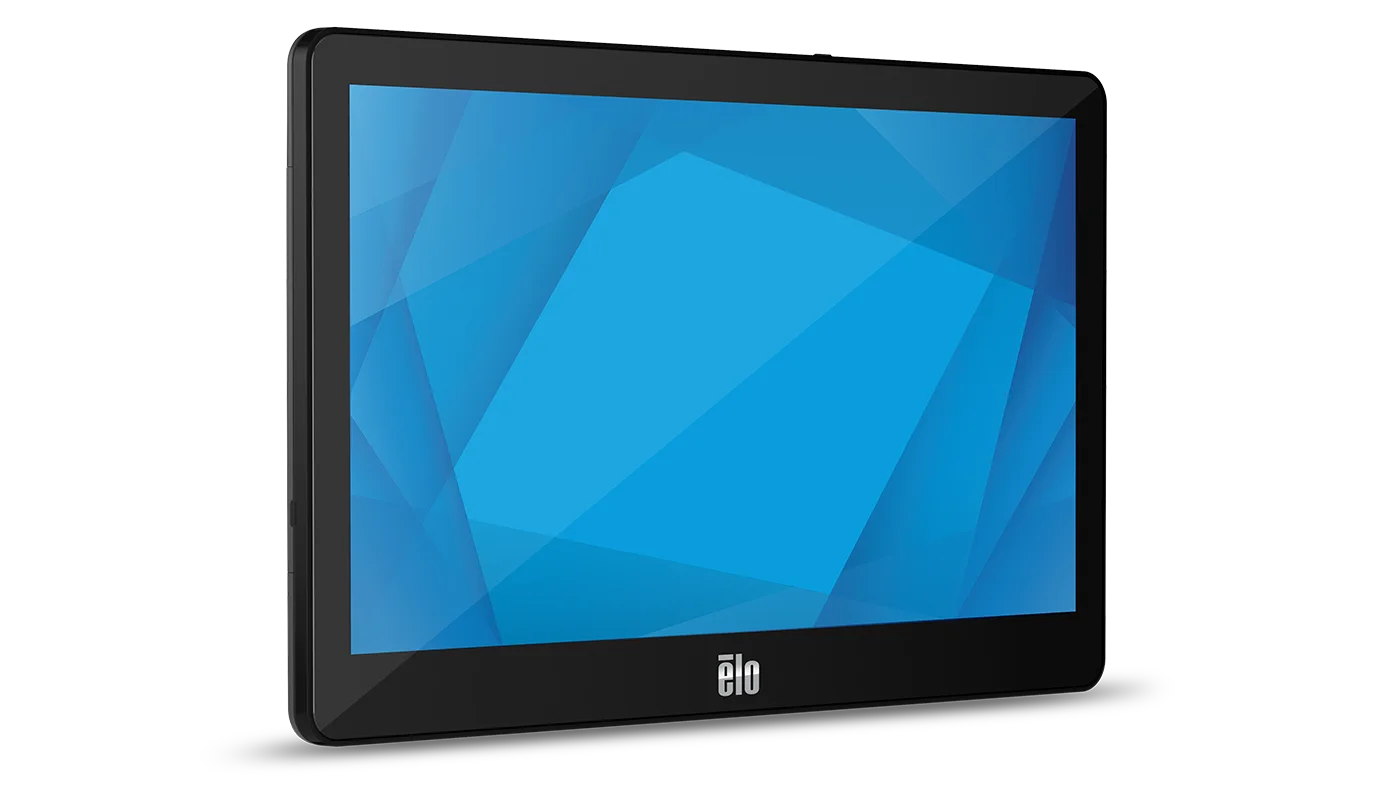

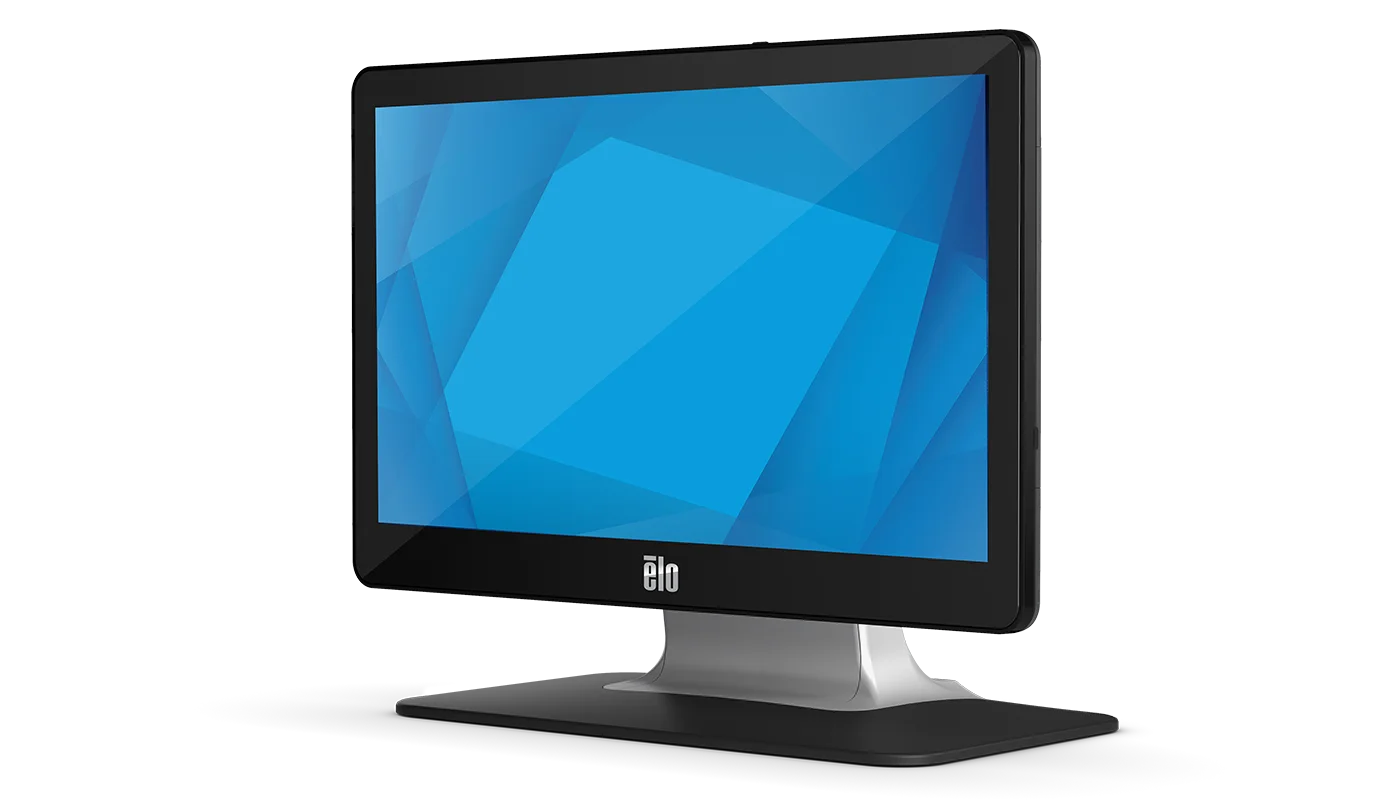

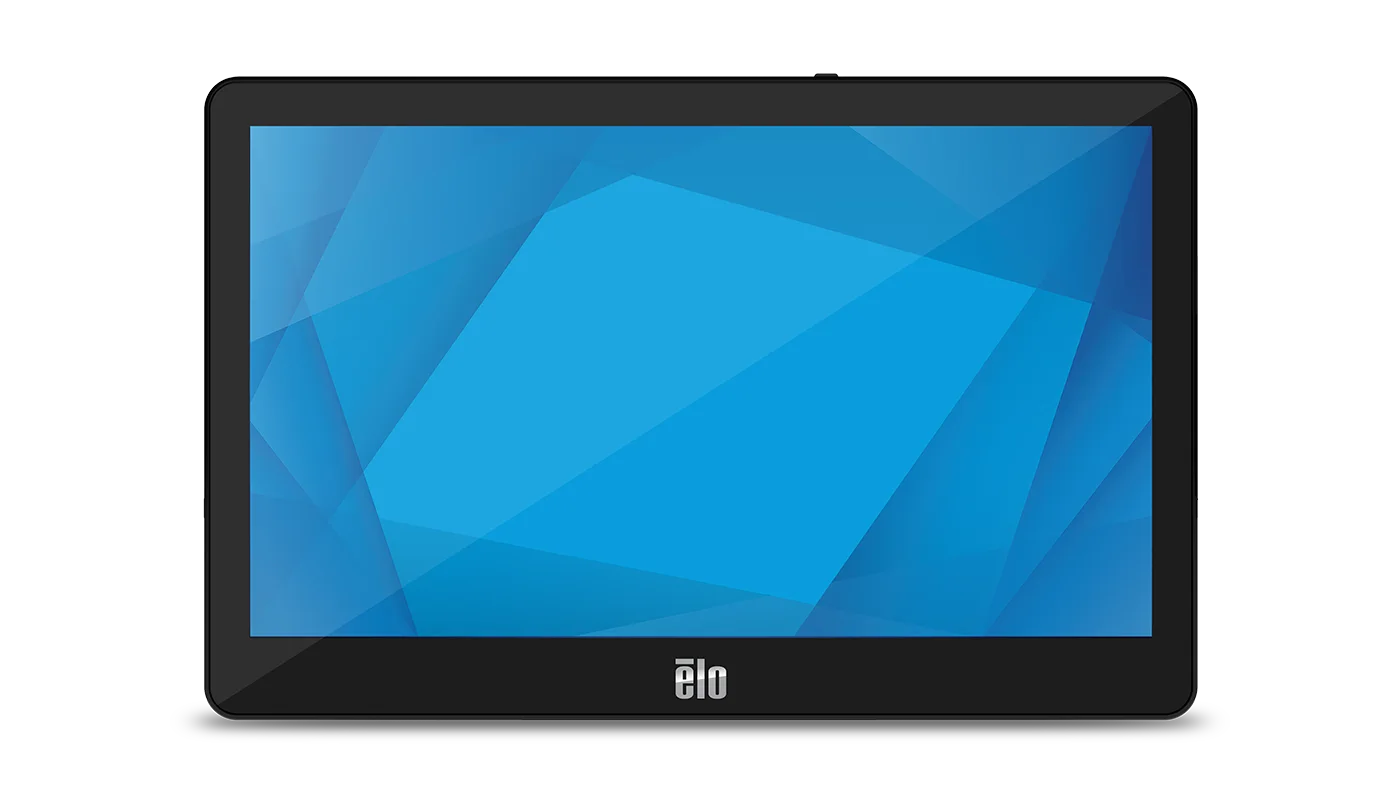

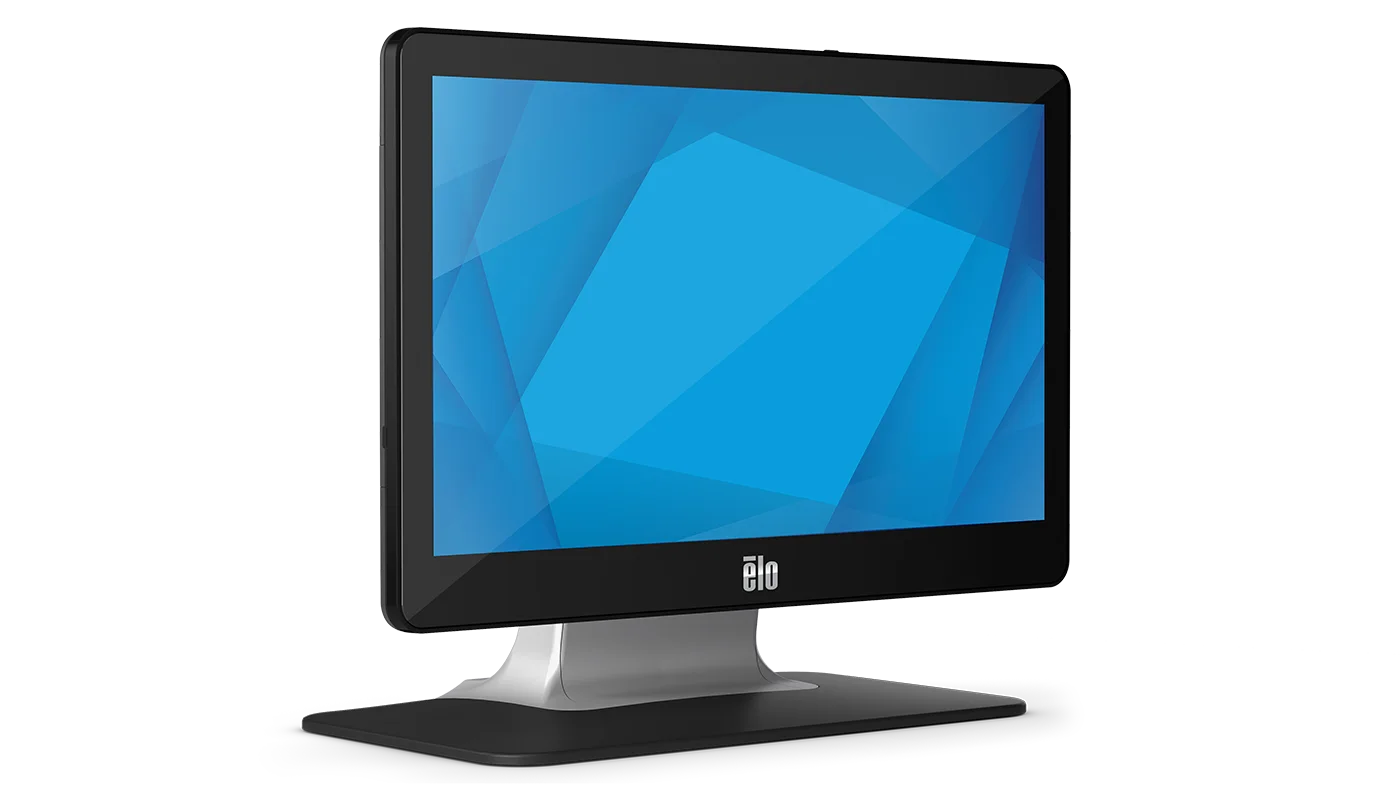

The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

The 1302L is the first of its kind in the commercial market, providing a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
The 1302L offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
The ability to take payment is essential to complete a transaction. The 1302L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

Best for: Kitchen Display Systems · Price Checkers · Interactive Price Check Displays

Specifications

Technical

Part Number(s): Black With Stand (Worldwide) - E683204; Black Without Stand (Worldwide) - E683595; White With Stand (Worldwide) - E683396; White Without Stand (Worldwide) - E683787
Enclosure Color: White or Black
Touch Technology & Capacity: PCAP (Projected Capacitive) - 10 Touch
Diagonal Size: 13.3'' diagonal, Active matrix TFT LCD
Aspect Ratio: 16:9
Active Area: 11.57" x 6.51" / 293.76 mm x 165.24 mm
Resolution: 1920 x 1080
Other Supported Resolutions: 640 x 480 60Hz; 640 x 400 70Hz; 720 x 400 70Hz; 720 x 576 50Hz; 800 x 600 60Hz; 1024 x 768 60Hz; 1280 x 720 50, 60Hz; 1280 x 800 60Hz, 60Hz RB; 1280 x 960 60Hz; 1280 x 1024 60Hz; 1360 x 768 60Hz; 1366 x 768 60Hz, 60Hz RB; 1440 x 900 60Hz, 60Hz RB; 1680 x 1050 60Hz, 60Hz RB; 1920 x 1080 50, 60Hz
Viewing Angle: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors: 16.7 million
Brightness (typical): Panel: 300 nits; TouchPro PCAP: 270 nits
Response Time-total (typical): 25 msec
Contrast Ratio: 800:1
Touch Interfaces: USB
Surface Treatment: Anti-glare
On Screen Display: Accessible through switches along the bottom:; Controls: Menu, Up, Down, Select, Power; Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Energy Saver, Panel Saver, Mute, Volume, Audio Source; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,; Lockouts: OSD, Power
I/O Ports: 1 x Full-function USB-C (Requires PD [Power Delivery], USB 3.0 and Display Port); 1 x Audio jack (Line-in); 1 x VGA; 1 x HDMI; 1 x 12V D/C input; 4x Micro-USB ports (Top, Bottom, Left, Right) for Elo Edge Connect peripherals
Speakers: 2 x 1W
Video: HDMI V1.3 Type A receptacle for HDMI input; Analog VGA; USB Type-C
Input Video Frequency: Horizontal: 30 – 75K KHz; Vertical: 60Hz
Power: Option 1 - USB Type-C Input voltage range: 5V±5% 3A / 9V±5% 3A / 15V±5% 1.8A / 20V±5% 1.35A; Option 2 - External DC Adapter 12V/36W in box; Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input voltage range: 12VDC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length); Adapter input voltage range: 100-240 VAC; Input frequency: 50-60 Hz
Power Consumption (Typical): Monitor + adapter; ON: 8.2W; SLEEP: 1.2W; OFF: 0.18W
Monitor Dimensions (without Stand): 8.32" x 12.84" x 0.99" / 211.30 mm x 326.06 mm x 25.05 mm

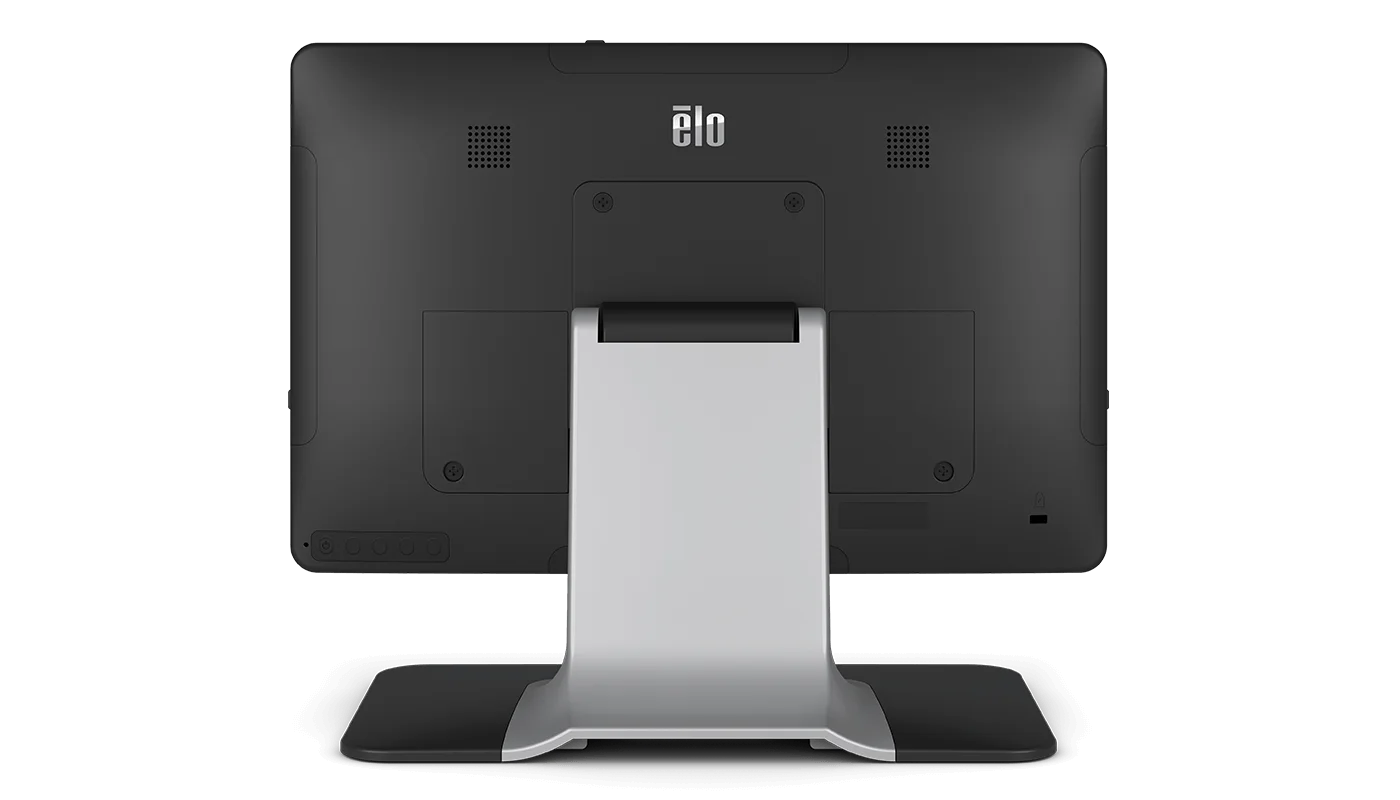

Monitor Dimensions (with Stand): 10.22" x 12.84" x 5.91" / 259.57 mm x 326.06 mm x 150 mm
Shipping Box Dimensions: Without Stand: 11.02" x 15.95" x 6.30" / 280 mm x 405 mm x 160 mm; With Stand: 13.11" x 16.34" x 8.66" / 333 mm x 415 mm x 220 mm
Weight (Unpackaged): Without Stand: 2.69 lbs / 1.22 kg; With Stand: 5.11 lbs / 2.32 kg
Weight (Packaged): Without Stand: 6.37 lbs / 2.89 kg; With Stand: 10.19 lbs / 4.62 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
MTBF: 50,000 hours demonstrated

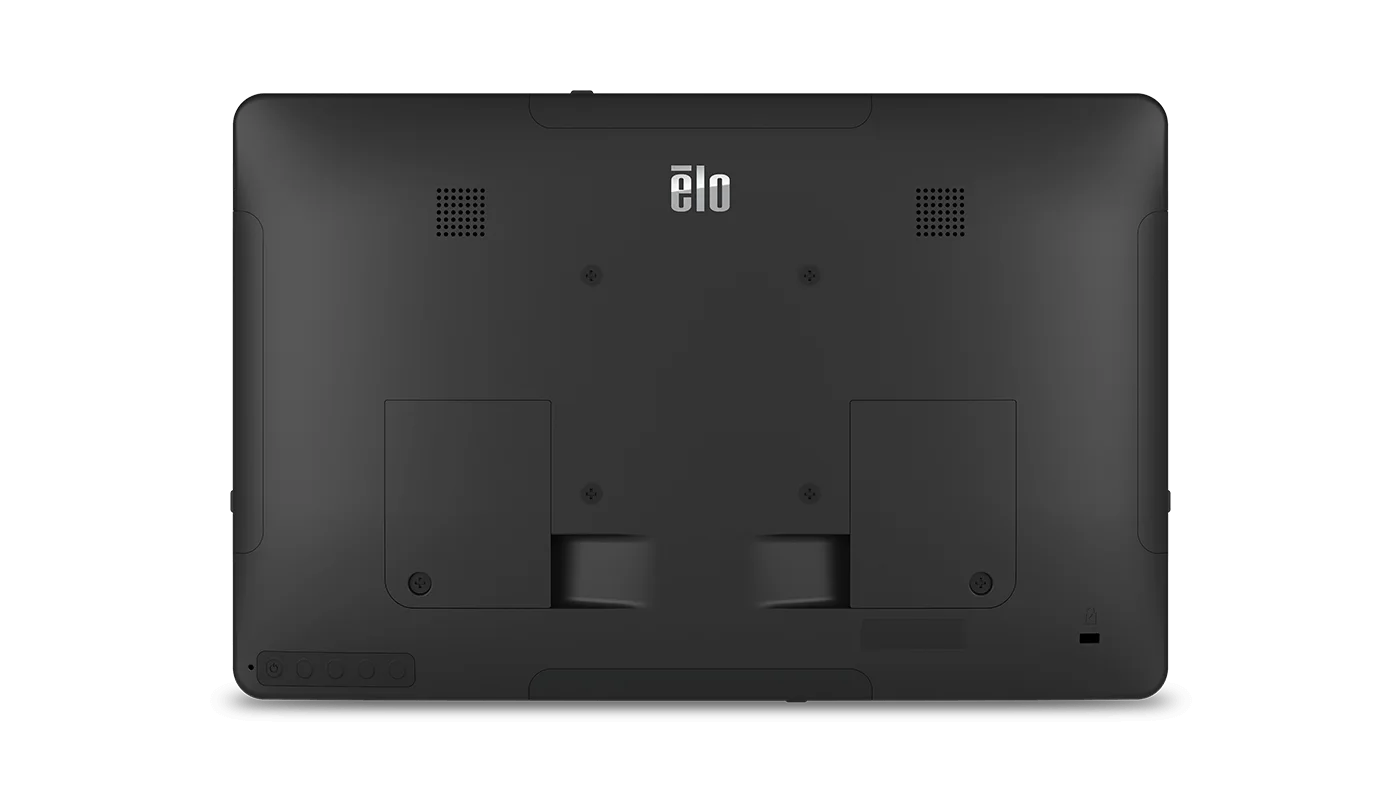

Mounting Options: VESA 75mm x 75mm (4-hole)
Warranty: 3-year
Extended Service Options: 4 year warranty coverage - Elo P/N: E898247; 5 year warranty coverage - Elo P/N: E898449; 3 year warranty coverage + AUR - Elo P/N: E898648; 4 year warranty coverage + AUR - Elo P/N: E894921; 5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations: Australia RCM; Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NOM; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, REACH; Russia EAC; India BIS
Ingress Protection: IPX1 for front side
Impact Protection: IK07
What's in the Box: Touchmonitor; HDMI cable; Touch USB Cable (USB Type-A to Type-C); Quick Install Guide; EEI Label; Power brick; NA Power cable; EU Power cable; 3x Tie wraps; 2x screws for cable cover(s)
Optional PCAP Stylus Pen: E066148
Optional Peripherals: Magnetic Stripe Reader (MSR) – Elo P/N: E001002; Barcode Reader (BCR) – Elo P/N: E093433; Customer Display (2x20 VFD) – Elo P/N: E001003; 2D Barcode Scanner – Elo P/N: E926356; PCAP Stylus Pen - Elo P/N: E066148; EMV Cradle for MagTek eDynamo - Elo P/N: E375343; EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981; EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930; RFID - Elo P/N: E673037; Speaker Bar (Black) - Elo P/N: E894719; Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits: Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382; Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069; Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458; Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663; Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864; Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151; Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097; Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282; Wallaby™ POS Stand (Black) - Elo P/N: E949536; Wallaby™ POS Stand (White) - Elo P/N: E353758; VGA-DB15 to Micro Cable Kit – Elo P/N: E710549; DVI-D to HDMI Cable Kit – Elo P/N: E538507; Elo Backpack® 4 (Value Model) - Elo P/N: E393754; Elo Backpack® 4 (Standard Model) - Elo P/N: E393359

Data from elotouch.com product page and its specification table, checked 2026-10-27.

Lifecycle

Sales status: Current
Status basis: Listed as a current product on elotouch.com; no end-of-life notice found on the product page
