Honeywell · Handheld computer

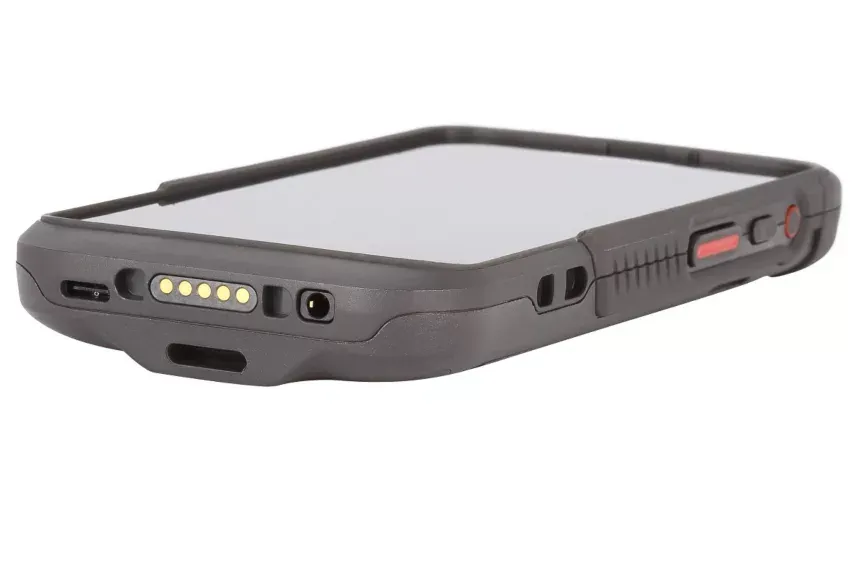

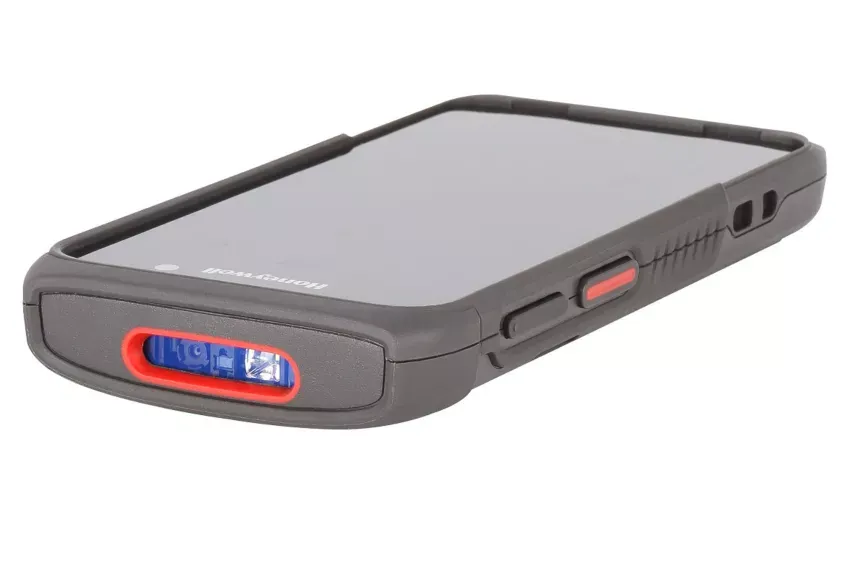

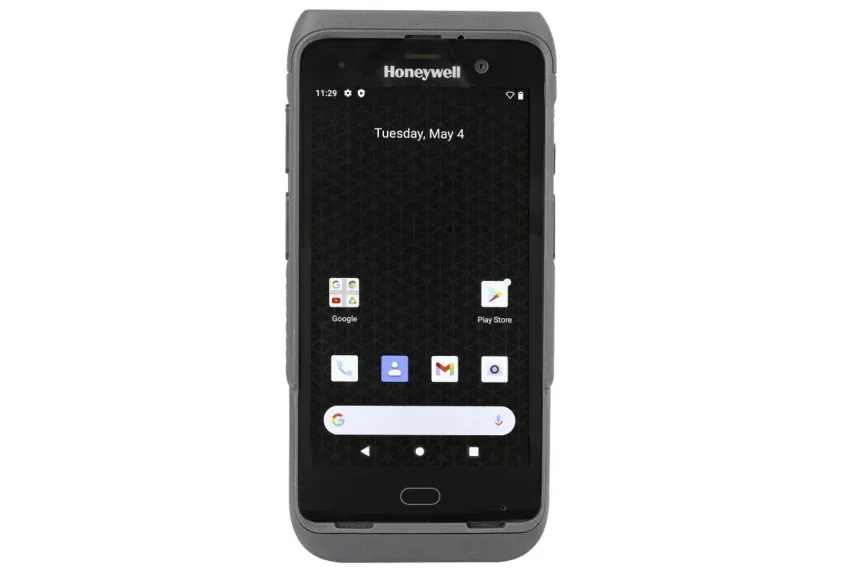

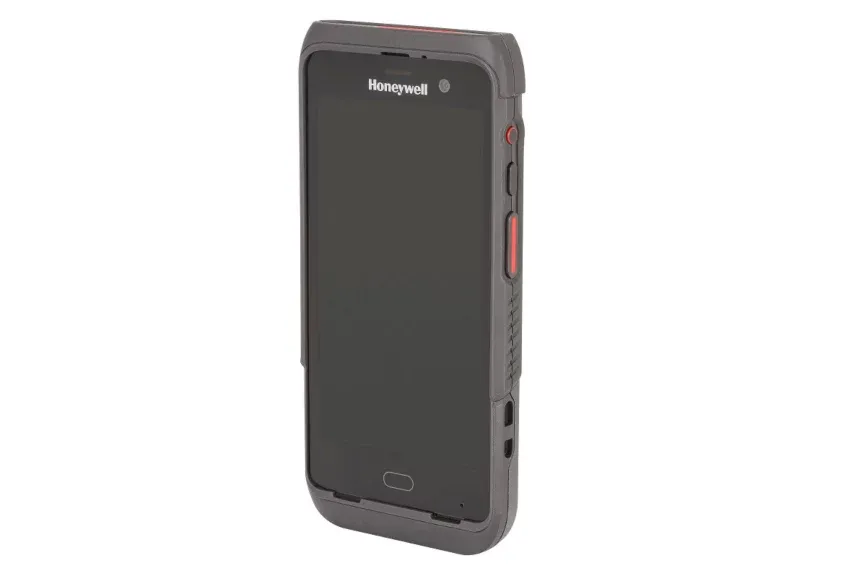

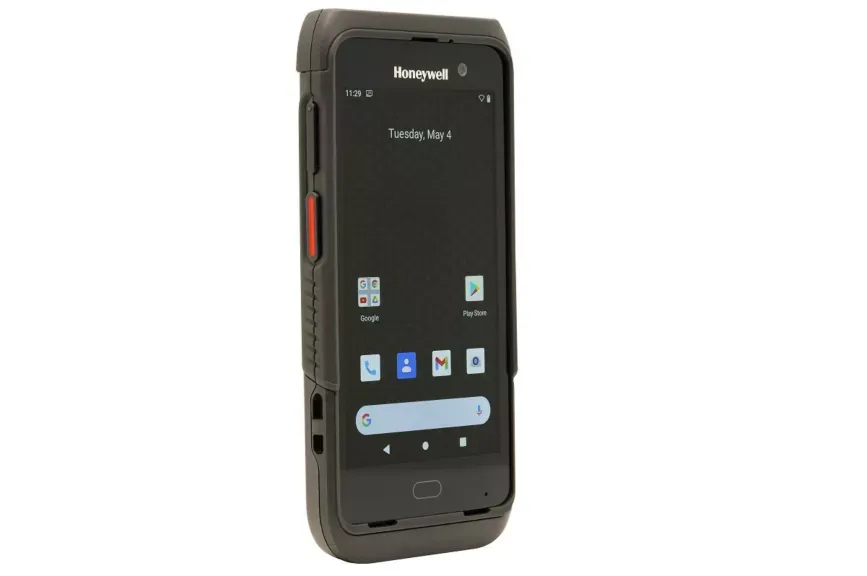

Honeywell CT45 XP

CT45 mobile computers, built on the Mobility Edge platform, are rugged, all-purpose productivity tools ensuring ultra-reliable performance, data connectivity and communications for front-line mobile workers in retail, logistics and fieldwork.

Operating systemAndroid Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and…
Display12.7 cm (5.0 in)
ScanningHoneywell FlexRange, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android
BatteryLi-Ion, 3.85 V, 4020 mAh; Quick Charge 3.0 compliant; Less than 3 hours to be fully charged.|Smart battery…
DropMultiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m…

Datasheet at Honeywell Product page at Honeywell

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

Connectivity: Wi-Fi Wi-Fi & Cellular
Environment: Standard
Application: Retail, transportation & logistics, manufacturing, healthcare, and public service
Cameras: 13-megapixel rear camera 8-megapixel front camera
Dimensions: 163 mm x 79 mm x 19.2 mm
Decode Capability: Honeywell FlexRange, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android
Bluetooth Specifications: 2nd BLE Available on CT45 XP only V5.1 Bluetooth and BLE
WWAN Specifications: AT&T FirstNet Compliant LTE Advanced Support LTE – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71 SIM: eSIM and NanoSIM (CT45XP) or 2 Nano SIMs (CT45) UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19 Up to 390 Mbps CAT13 LTE downlink Up to 75 Mbps CAT5 LTE uplink WWAN Radio (ATT/VZW/SPRINT/ TMO/NA/EU)
WLAN Specifications: All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc All other configurations: IEEE 802.11 a/b/g/n/ac CT45 XP WLAN: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise) WLAN: Wi-Fi certified
RFID Specifications: Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 (Type F)
GPS Specifications: 850, 900, 1800, 1900 (Quad Bands) GPS Supported Protocols: Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou, Assisted GPS
Operating system: Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility
RAM / storage options: 6 GB DDR4x RAM, 64 GB UFS Flash (CT45XP); 4 GB DDR4x RAM, 64 GB UFS Flash (CT45) User-accessible microSD card up to 512 GB (SDXC/SDHC/ SDIO-compliant)
Display resolution: Full High Definition (1920 x 1080) (CT45XP) High-Definition (1280 x 720) (CT45)
Scan range / decode distances: Mid Range (0-5m) Standard Range (0-1m)
Display size: 12.7 cm (5.0 in)
Processor: Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
Keyboard / keys: Full Touchscreen
Battery / runtime: Li-Ion, 3.85 V, 4020 mAh
Battery Types: 2nd BLE Available on CT45 XP only
Battery / runtime: Quick Charge 3.0 compliant; Less than 3 hours to be fully charged. Smart battery with integrated diagnostic tools
Minimum Operating Temperature: User-accessible microSD card up to 512 GB (SDXC/SDHC/ SDIO-compliant)
Storage temperature: -30°C to +70°C (-22°F to +158°F)
Operating temperature: -20°C to +50°C (-4°F to +122°F)
Humidity: 5% to 95% (non-condensing)
Tumble specification: Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification
Incendiary Protection: 850, 900, 1800, 1900 (Quad Bands)
Drop specification: Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
Warranty Duration: One-year factory warranty
Brand: Honeywell
Industry: Aerospace Logistics & Warehouses Manufacturing Retail
Connectivity: Wi-Fi|Wi-Fi & Cellular
Cameras: 13-megapixel rear camera|8-megapixel front camera
Bluetooth Specifications: 2nd BLE Available on CT45 XP only|V5.1 Bluetooth and BLE
WWAN Specifications: AT&T FirstNet Compliant|LTE Advanced Support|LTE – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71|SIM: eSIM and NanoSIM (CT45XP) or 2 Nano SIMs (CT45)|UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19|Up to 390 Mbps CAT13 LTE downlink|Up to 75 Mbps CAT5 LTE uplink|WWAN Radio (ATT/VZW/SPRINT/ TMO/NA/EU)
WLAN Specifications: All SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc|All other configurations: IEEE 802.11 a/b/g/n/ac|CT45 XP WLAN: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO|WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)|WLAN: Wi-Fi certified
GPS Specifications: 850, 900, 1800, 1900 (Quad Bands)|GPS Supported Protocols: Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou, Assisted GPS
RAM / storage options: 6 GB DDR4x RAM, 64 GB UFS Flash (CT45XP); 4 GB DDR4x RAM, 64 GB UFS Flash (CT45)|User-accessible microSD card up to 512 GB (SDXC/SDHC/ SDIO-compliant)
Display resolution: Full High Definition (1920 x 1080) (CT45XP)|High-Definition (1280 x 720) (CT45)
Scan range / decode distances: Mid Range (0-5m)|Standard Range (0-1m)
Battery / runtime: Quick Charge 3.0 compliant; Less than 3 hours to be fully charged.|Smart battery with integrated diagnostic tools
Industry: Aerospace|Logistics & Warehouses|Manufacturing|Retail
X: BRV900~51400955-100
Operating temperature: (-4°F to +122°F)
Storage temperature: (-22°F to +158°F)
Wi-Fi / WLAN: Bluetooth®: V5.1 Bluetooth and BLE

Manufacturer lists options and regional variants. Confirm selected SKU, delivered OS and scan engine.

Lifecycle

Sales status: Current catalogue
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
