Honeywell · Handheld computer

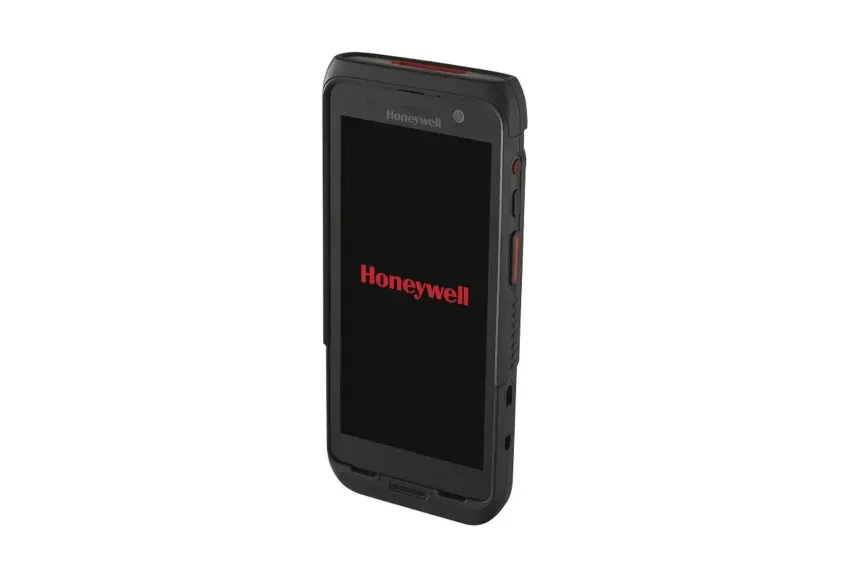

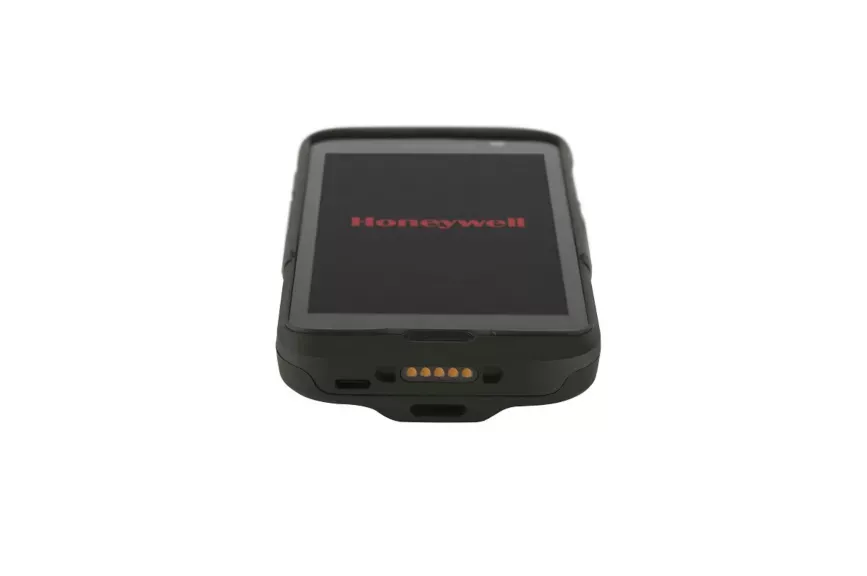

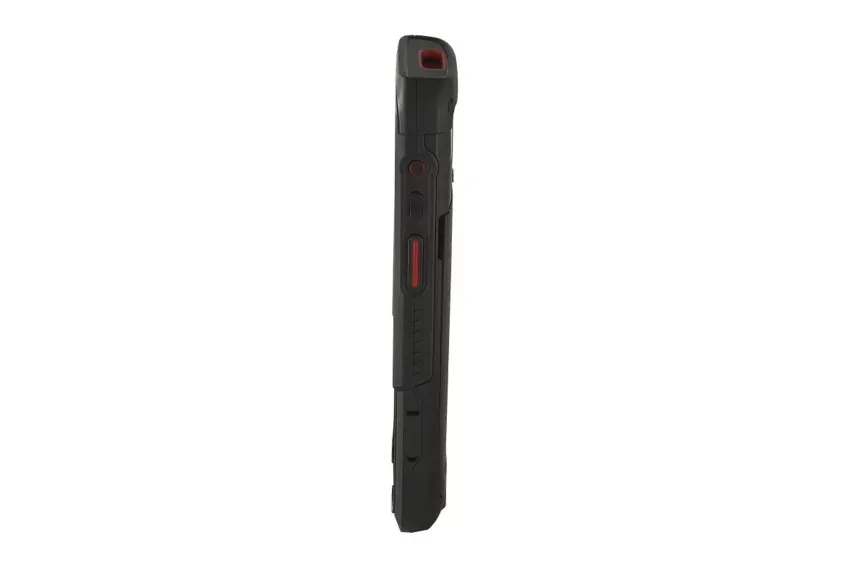

Honeywell CT47

CT47 mobile computer, built on the Mobility Edge™ platform, are ultra-rugged, all-purpose productivity devices ensuring reliable performance, 5G data connectivity and communications for front-line mobile workers in logistics, warehouse and fieldwork

Operating systemAndroid Released with Android 12 and guaranteed through Android 15
Display14 cm (5.5 in)|14cm (5.5in) 14 cm (5.5 in) 14cm (5.5in)
ScanningStandard Range Engine S0703 (1D/2D barcode symbologies)Honeywell FlexRange™ N6803Honeywell FlexRange™ XLR…
BatteryLithium Ion Weight: 314g (11.1oz) with standard Display Size: 13.97 cm (5.5 in)
SealingCertified for IP65 & IP68
DropMultiple 2.45m (8 ft.) drops to concrete per MIL-STD-810H|Multiple 2.45m (8ft) drops to concrete per…

Datasheet at Honeywell Product page at Honeywell

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

Connectivity: Wi-Fi Wi-Fi & Cellular
Environment: Hazardous Area Standard
Application: Transportation & Logistics, Warehouse, Manufacturing, Field Operations
Dimensions: 170mm x 79mm x 19.2mm
Decode Capability: Standard Range Engine S0703 (1D/2D barcode symbologies)Honeywell FlexRange™ N6803Honeywell FlexRange™ XLR S0803
Computer Wireless Communication: 5G & WiFi 6E
Bluetooth Specifications: 5.2
WWAN Specifications: WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU)AT&T FirstNet CompliantLTE Advanced Support: Up to 390 Mbps CAT13 LTE downlink. Up to 75 Mbps CAT5 LTE uplink5G FR1: Bands 1, 2, 3, 4, 5, 7, 8, 12, 14, 20, 25, 28, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79LTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 43, 66, 71UMTS/HSPA+ (3G): Bands 1, 2, 4, 5, 6, 8, 9, 19GSM: 850, 900, 1800, 1900 (Quad Bands)4X4 MIMO supported: 5G: n7, n38, n41, n48, n77, n78, n79. 4G: B
WLAN Specifications: Wi-Fi certified; Wi-Fi™ 6E certifiedIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO; Wi-Fi™ 6E (801.11ax); Dual Band Simultaneous(DBS); IPv4, IPv6WLAN Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise)Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, CCX compatible
Operating System Type: Android
Operating system: Released with Android 12 and guaranteed through Android 15
Platform: Mobility Edge
RAM / storage options: 6GB DDR4x RAM, 128GB UFS Flash8GB DDR4x RAM, 128GB UFS FlashUser-accessible microSD card up to 2TB (SDXC/SDHC/SDIO – compliant)
Keyboard / keys: Full Touchscreen
Scan range / decode distances: Long Range (0-20m) Mid Range (0-5m) Standard Range (0-1m)
Display size: 14 cm (5.5 in) 14cm (5.5in)
Processor: Qualcomm QCS6490/QCM6490 octa-core 2.7GHz
Battery Types: Standard & Wireless
Battery / runtime: Lithium Ion
Storage temperature: -30°C to +70°C (-22°F to +158°F) -30°C to +70°C(-22°F to +158°F)
Operating temperature: -20°C to +50°C (-4°F to +122°F)
Tumble specification: Exceeds 2,000 tumbles at 1m (3.28ft) per IEC 60068-2-32 specificationExceeds 3,500 tumbles at 0.5m (1.64ft) per IEC 60068-2-32 specification
Drop specification: Multiple 2.45m (8 ft.) drops to concrete per MIL-STD-810H Multiple 2.45m (8ft) drops to concrete per MIL-STD-810HMultiple 2.75m (9ft) drops to concrete with protective boot per MIL-STD-810H Multiple 2.75m (9 ft.) drops to concrete with protective boot per MIL-STD-810H
Protection Ratings: Certified for IP65 & IP68
Warranty Duration: 1 year
Industry: Aerospace Logistics & Warehouses Manufacturing
Connectivity: Wi-Fi|Wi-Fi & Cellular
Environment: Hazardous Area|Standard
Scan range / decode distances: Long Range (0-20m)|Mid Range (0-5m)|Standard Range (0-1m)
Display size: 14 cm (5.5 in)|14cm (5.5in)
Storage temperature: -30°C to +70°C (-22°F to +158°F)|-30°C to +70°C(-22°F to +158°F)
Drop specification: Multiple 2.45m (8 ft.) drops to concrete per MIL-STD-810H|Multiple 2.45m (8ft) drops to concrete per MIL-STD-810HMultiple 2.75m (9ft) drops to concrete with protective boot per MIL-STD-810H|Multiple 2.75m (9 ft.) drops to concrete with protective boot per MIL-STD-810H
Industry: Aerospace|Logistics & Warehouses|Manufacturing
X: BRV900~51400955-100
Battery / runtime: Weight: 314g (11.1oz) with standard
Battery / runtime: Display Size: 13.97 cm (5.5 in)
Operating temperature: (-4°F to 122°F)
Storage temperature: (-22°F to 158°F)
Battery / runtime: Weight: 314g (11.1oz) with standard
Operating temperature: (-4°F to 122°F)
Storage temperature: (-22°F to 158°F)

Manufacturer lists options and regional variants. Confirm selected SKU, delivered OS and scan engine.

Lifecycle

Sales status: Current catalogue
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
