Honeywell · Handheld computer

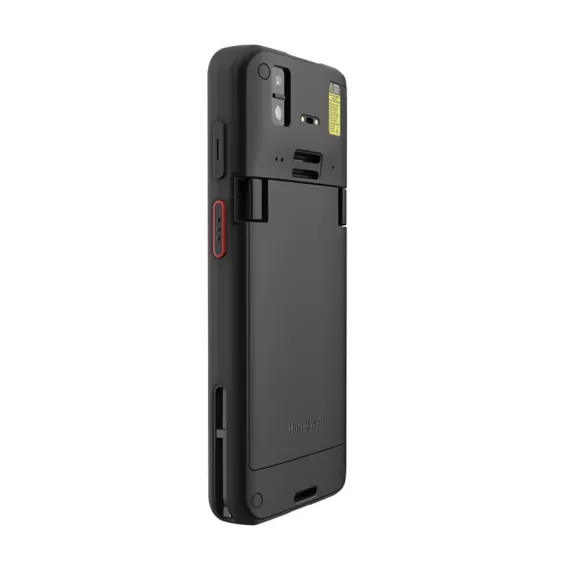

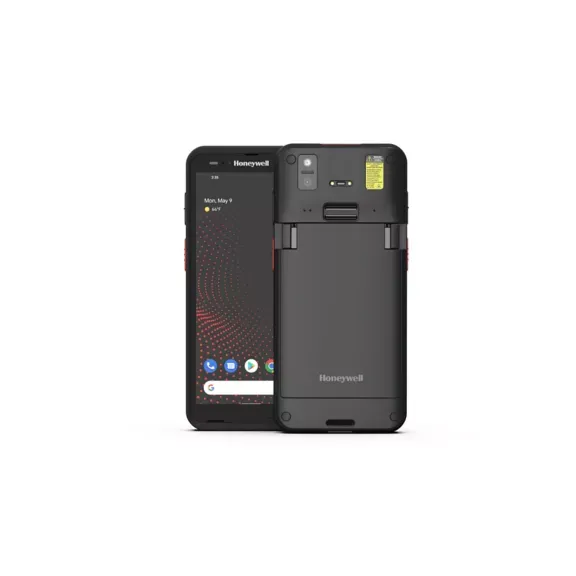

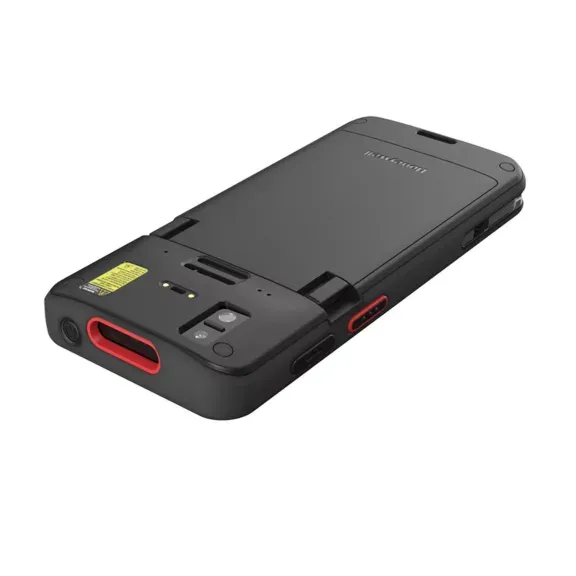

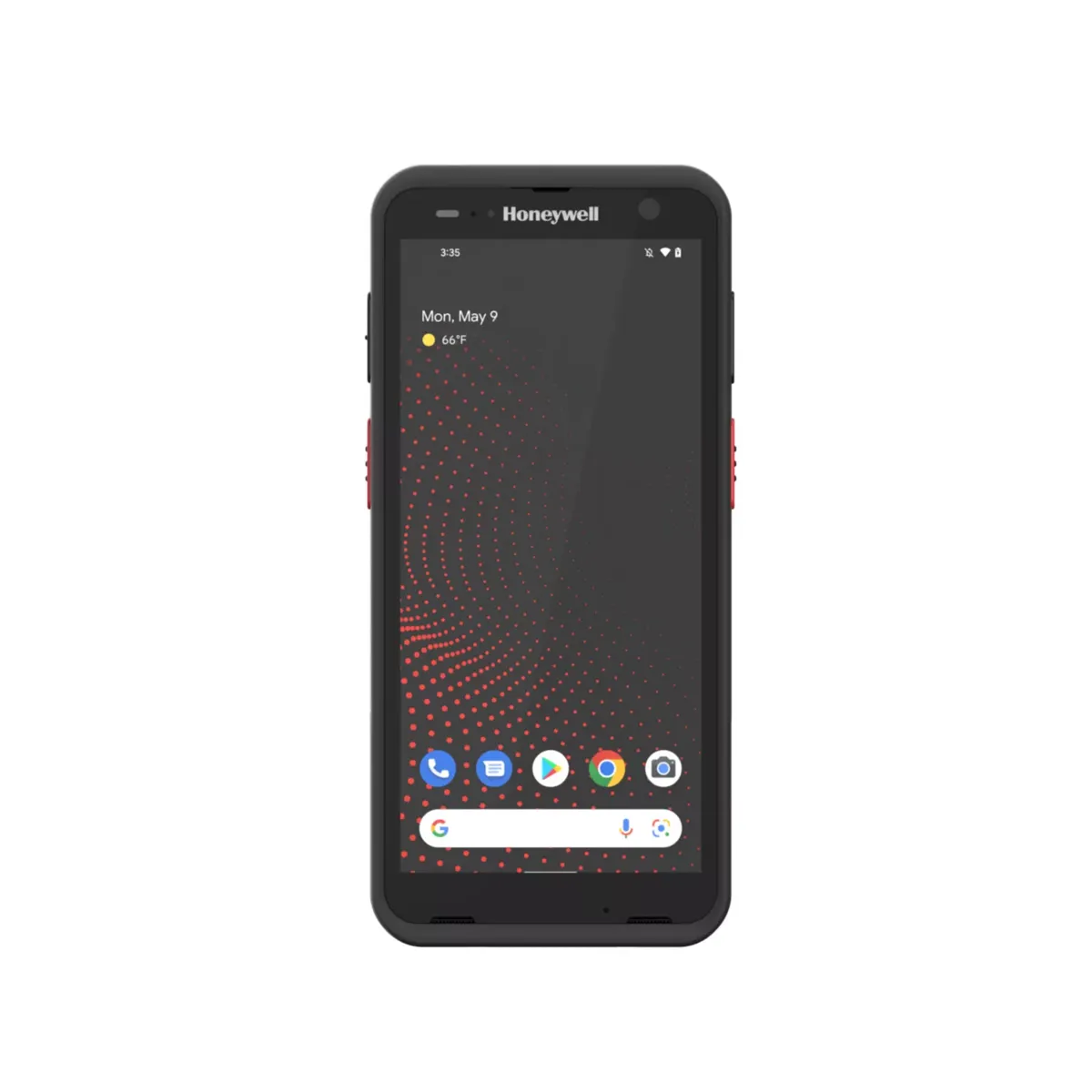

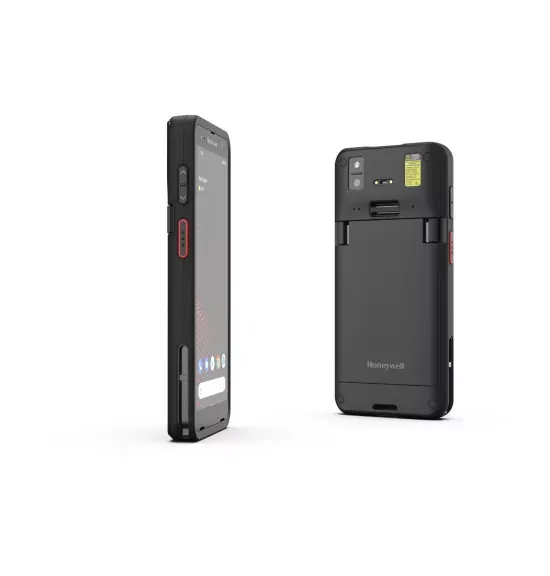

Honeywell CT70

Ultra-rugged, ultra-reliable, 5G connected device for enterprise customers that need a long service life and a predictable O/S upgrade path.

Operating systemAndroid
Display15.2 cm (6.0 in)
ScanningLaser aimer; Honeywell FlexRange™ S0803 standard, Honeywell S0703 (1D/2D barcode symbologies), Honeywell…
Battery4,775 mAh standard battery; 4,775 mAh wireless battery; 7,692 mAh extended battery; Li-ion Li-ion 4,775 mAh…
SealingIP68/IP65
DropMultiple 2.4 m (8 ft) drops to concrete at -20°C to 50°C (-4°F to 122°F) per MIL-STD 810H booted Multiple…

Datasheet at Honeywell Product page at Honeywell

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

Application: Transportation & Logistics, Grocery Retail, Field Operations
Housing Grade: Standard
For Use With: Android
Features: Integrated RFID; Integrated NFC in display; Wi-Fi 7
Environment: Standard
Durability: Ultra-rugged
Connectivity: Wi-Fi Wi-Fi & Cellular
Camera Position: Rear and Front
Cameras: 13-megapixel rear camera, phase detection autofocus, supports torch mode; 8-megapixel front-facing camera
Dimensions: 170 mm x 78.6 mm x 16.7 mm (grip area) with standard battery; 170 mm x 78.6 mm x 22.3 mm (grip area) with extended battery
Decode Capability: Honeywell FlexRange™ S0803 standard, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android, DPM supported via license
WWAN Specifications: Global bands support, device certified with GCF-PTCRB, ATT, TMO, VZW AT&T FirstNet Compliant LTE Advanced Support 5G FR1: Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
WLAN Specifications: Wi-Fi certified; Wi-Fi 6E & Wi-Fi 7 Certified IEEE802.11a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax/be, 2x2 MU-MIMO; Triband (2.4GHz, 5GHz, 6GHz); Wi-Fi 6E (801.11ax); Supports multi-link operation (MLO)
RFID Specifications: Integrated NFC reader in display, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/ IEC 18092 (Type F), Card Emulation; Contactless payment support, ECP 1.0 and ECP 2.0
GPS Specifications: GPS, GLONASS, Galileo, Beidou, NAVIC, QZSS; Dual-Band GNSS — concurrent L1/G1/ E1/B1 (GPS/QZSS, GLONASS, Galileo, BeiDou) + L5/E5a/B2a (GPS/QZSS, Galileo, BeiDou); a-GPS, Supports XTRA, SBAS.
Computer Wireless Communication: 5G , CBRS, Wi-Fi 7, Wi-Fi 6E, BT v6.0, UHF, NFC
Bluetooth Specifications: Class 1.5, V6.0 Bluetooth and BLE
Platform: Mobility Edge
Operating system: Android
RAM / storage options: 8GB LPDDR5 RAM, 128GB UFS 3.1 Flash
Scan Range: Standard Range and FlexRange
Scan Engine Type: Laser aimer
Scan Engine Range: Mid Range (0-5m) Standard Range (0-1m)
Scan range / decode distances: Mid Range (0-5m) Standard Range (0-1m)
Processor
Network: Wi-Fi and Cellular
Keyboard / keys: Full Touchscreen
Display size: 15.2 cm (6.0 in)
Display resolution: Full High-Definition (2280 x1080)
Battery Types: Hot swap; Field replaceable
Battery / runtime: Li-ion
Battery / runtime: 4,775 mAh standard battery; 4,775 mAh wireless battery; 7,692 mAh extended battery
Storage temperature: -30°C to 70°C (-22°F to 158°F)
Operating temperature: -20°C to 50°C (-4°F to 122°F)
Humidity: 5% to 95% (non-condensing)
Tumble specification: Exceeds 3,000 0.5 m (1.6 ft) tumbles and 1,500 1.0m (3.3 ft) tumbles without boot; Exceeds 2,000 1m (3.3 ft) tumbles with boot per IEC 60068-2-32 specification
Protection Ratings: IP68/IP65
Drop specification: Multiple 2.4 m (8 ft) drops to concrete at -20°C to 50°C (-4°F to 122°F) per MIL-STD 810H booted Multiple 1.8m (6ft) drops to concrete at -20°C to 50°C (-4°F to 122°F) per MILSTD- 810H without boot
Warranty Duration: 1 year
Connectivity: Wi-Fi|Wi-Fi & Cellular
Scan range / decode distances: Mid Range (0-5m)|Standard Range (0-1m)
X: BRV900~51400955-100
Operating temperature: to 122°F)
Storage temperature: 158°F)

Manufacturer lists options and regional variants. Confirm selected SKU, delivered OS and scan engine.

Lifecycle

Sales status: Current catalogue
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
