Honeywell · Wearable computer

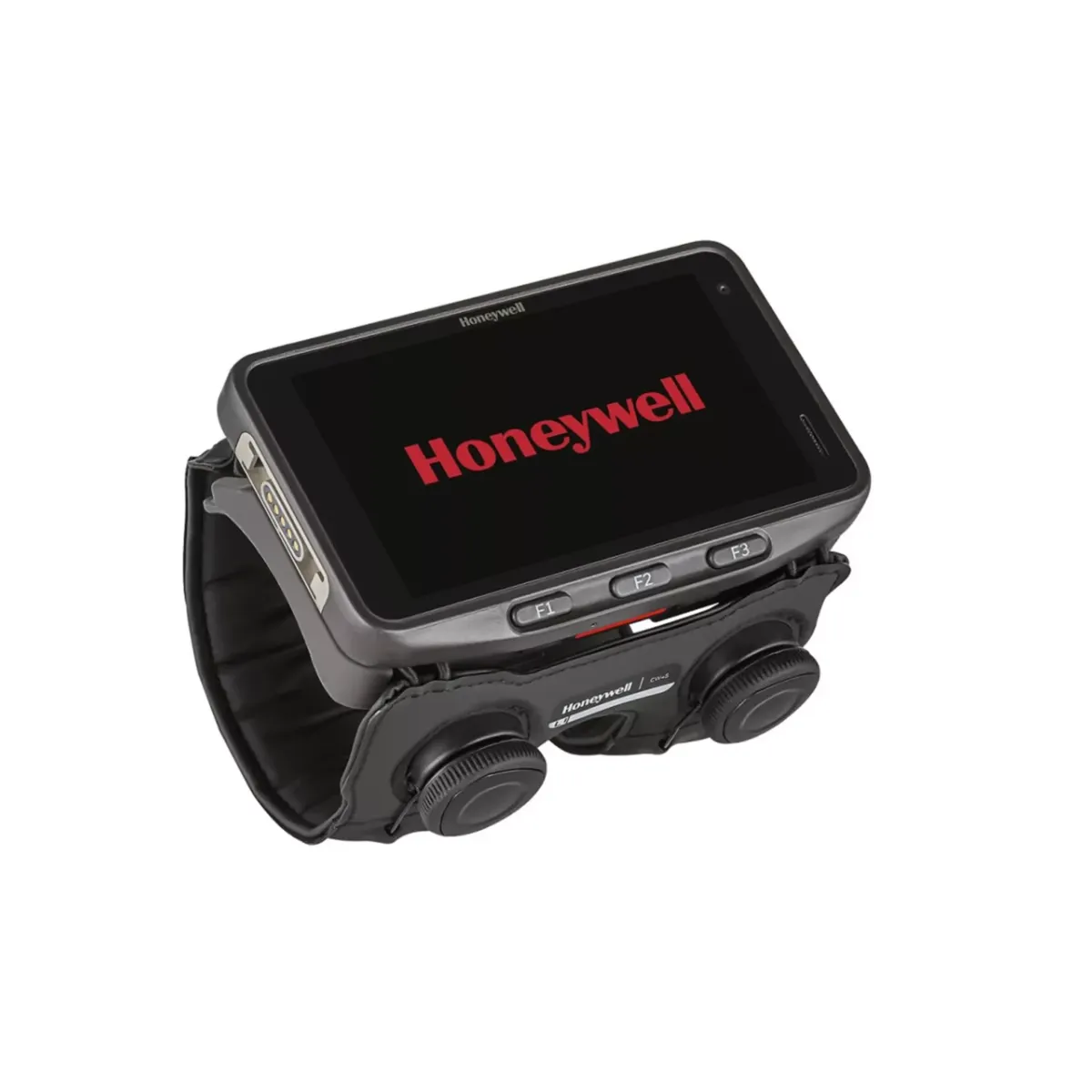

Honeywell CW45

The CW45 wearable mobile computer brings optimized ergonomics and performance to arm-worn applications. Comfortable, powerful, compact, durable, and easy to use, the CW45 provides maximum solution return on investment.

Operating systemReleased with Android 12. Guaranteed
ScanningCan read barcodes with paired scanner accessory, or via integrated camera
Battery3400 mAh (standard)|6800 mAh (extended) 3400 mAh (standard) 6800 mAh (extended) 328g (11.6 oz) with extended…
SealingIndependently certified to meet IP65 and IP67 standards for moisture and particle intrusion
DropMultiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H

Datasheet at Honeywell Product page at Honeywell

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Specifications

Environment: Standard
Application: DC E-Commerce Manufacturing Retail Warehouse
Features: Compact and comfortable wearable MobilityEdge™ computer
Dimensions: 133 mm x 86 mm x 14 mm
Decode Capability: Can read barcodes with paired scanner accessory, or via integrated camera
Scan range / decode distances: No Scanner
Computer Wireless Communication: WLAN, Bluetooth, NFC
Bluetooth Specifications: Bluetooth 5.1, classic and BLE
WLAN Specifications: Wi-Fi6 certified: IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO
Connectivity: Wi-Fi
RAM / storage options: 6 GB DDR4x RAM, 64 GB UFS Flash
Keyboard / keys: Full Touchscreen
Processor: Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
Battery / runtime: 3400 mAh (standard) 6800 mAh (extended)
Battery Types: Li-ion
Storage temperature: -30°C to +70°C (-22°F to +158°F)
Operating temperature: -20°C to +50°C (-4°F to +122°F)
Humidity: 5% to 95% (non-condensing)
Cold Storage: Yes, -20C minimum operating temperature
Tumble specification: Exceeds 1,000 times at 0.5m (1.64 ft) per IEC 60068-2-32 specification
Drop specification: Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H
Protection Ratings: Independently certified to meet IP65 and IP67 standards for moisture and particle intrusion
Warranty Duration: One year factory warranty
Industry: Healthcare Logistics & Warehouses Manufacturing Retail
Application: DC|E-Commerce|Manufacturing|Retail|Warehouse
Battery / runtime: 3400 mAh (standard)|6800 mAh (extended)
Industry: Healthcare|Logistics & Warehouses|Manufacturing|Retail
X: BRV900~51400955-100
Battery / runtime: 328g (11.6 oz) with extended battery pack
Operating temperature: -20°C to +50°C (-4°F to +122°F)
Storage temperature: -30°C to +70°C (-22°F to +158°F)
Operating system: Released with Android 12. Guaranteed
RAM / storage options: 6 GB DDR4x RAM, 64 GB UFS Flash
Cameras: 13-megapixel side-facing camera;
Bluetooth: connection to 8675i
Wi-Fi / WLAN: Wi-Fi6 certified: IEEE 802.11 a/b/g/n/ac/

Manufacturer lists options and regional variants. Confirm selected SKU, delivered OS and scan engine.

Lifecycle

Sales status: Current catalogue
Status basis: Listed in official model catalogue; regional orderability requires confirmation.
