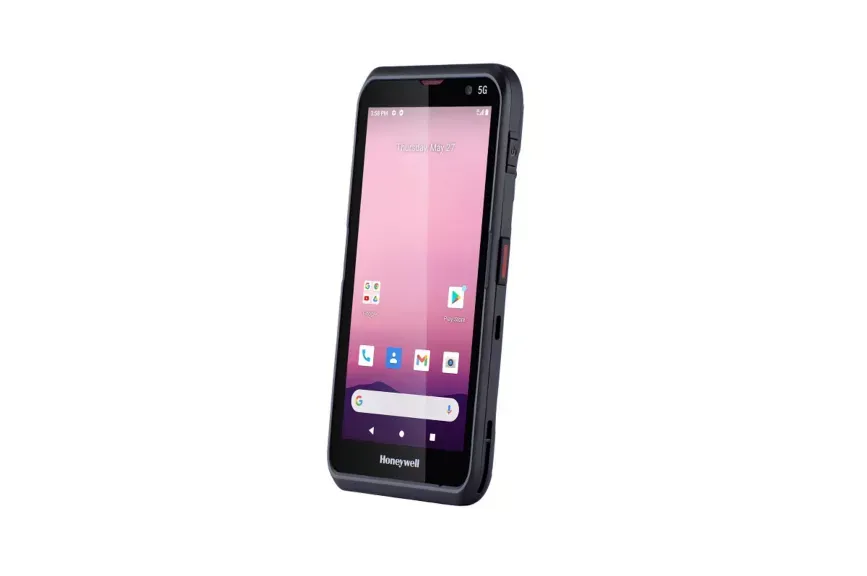

Honeywell EDA57
ScanPal EDA57 is a 5G enterprise mobile computer that provides fast and mass data interactions between frontline workers and backend systems. Light weight and rugged design makes EDA57 ideal for retail, logistics, manufacturing, and public service.
- Operating systemAndroid Android 12, upgradeable to Android 14* *Android 14 is pending for the confirmation from Qualcomm &…
- DisplayGorilla Glass 5, 5.5-inch
- ScanningHoneywell S0703 Slim Imager; Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
- BatteryLi-Ion, 3.8 V
- SealingIP67
- DropMultiple 1.5m per MIL-STD 810G drops to concrete at room temperature|Multiple 1.8m per MIL-STD 810G drops…
Datasheet at Honeywell Product page at Honeywell
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Cameras
- 16-megapixel color rear camera 8-megapixel color front camera
- Camera Position
- Front Rear
- Connectivity
- Wi-Fi Wi-Fi & Cellular
- Environment
- Standard
- Application
- Retail, transportation & logistics, manufacturing, distribution center, and public service
- Dimensions
- 159mm x 75 mm x 14.4 mm 6.26 in x 2.95 in x 0.57 in
- Decode Capability
- Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
- Computer Wireless Communication
- NFC: Integrated Near Field Communication
- Bluetooth Specifications
- Bluetooth Class 5.1
- WWAN Specifications
- 5G NR: n1/n2/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n66/n77/n78/n79 GSM: 850/900/1800/1900 LTE: B1/B2/B3/B4/B5/B7/B8/B19/B20/B26/B28/B38/B40/B41/B66 UMTS: B1/B2/B4/B5/B6/B8/B19
- WLAN Specifications
- Additional WLAN Features:802.11 d/e/h/i/k/ r/u/w/v, 2X2 MU-MIMO WLAN (Wi-Fi Alliance certified):IEEE 802.11 a/b/g/n/ac WLAN Security: OPEN, WEP, WPA/WPA2(Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise) WLAN Supported EAP:TLS, PEAP, TTLS, PWD, LEAP
- GPS Specifications
- Simultaneous receiver support for GPS, AGPS, Beidou, GLONASS, and Galileo
- Operating system
- Android 12, upgradeable to Android 14* *Android 14 is pending for the confirmation from Qualcomm & Google
- RAM / storage options
- 4 GB RAM / 64 GB Flash 6 GB RAM / 128 GB Flash 8 GB RAM / 128 GB Flash
- Scan Engine Model
- Honeywell S0703 Slim Imager
- Scan range / decode distances
- Standard Range (0-1m)
- Display size
- Gorilla Glass 5, 5.5-inch
- Processor
- Qualcomm Snapdragon SM4350 Pro Kryo 460, 2xGold (A76 based) + 6xSilver (A55 based)
- Keyboard / keys
- Full Touchscreen
- Battery Types
- Removable
- Battery / runtime
- Li-Ion, 3.8 V
- Storage temperature
- -22°F to 158°F -30°C to +70°C
- Operating temperature
- -20°C to +50°C -4°F to +122°F
- Humidity
- 5% to 90% (non-condensing)
- Tumble specification
- 1000 times at 0.5 m 1000 times at 1.64 ft
- Drop specification
- Multiple 1.5m per MIL-STD 810G drops to concrete at room temperature Multiple 1.8m per MIL-STD 810G drops with rubber boot concrete at room temperature Multiple 5ft per MIL-STD 810G drops to concrete at room temperature Multiple 6ft per MIL-STD 810G drops with rubber boot concrete at room temperature
- Protection Ratings
- IP67
- Warranty Duration
- One-year factory warranty
- Industry
- Retail
- Cameras
- 16-megapixel color rear camera|8-megapixel color front camera
- Camera Position
- Front|Rear
- Connectivity
- Wi-Fi|Wi-Fi & Cellular
- Dimensions
- 159mm x 75 mm x 14.4 mm|6.26 in x 2.95 in x 0.57 in
- WWAN Specifications
- 5G NR: n1/n2/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n66/n77/n78/n79|GSM: 850/900/1800/1900|LTE: B1/B2/B3/B4/B5/B7/B8/B19/B20/B26/B28/B38/B40/B41/B66|UMTS: B1/B2/B4/B5/B6/B8/B19
- WLAN Specifications
- Additional WLAN Features:802.11 d/e/h/i/k/ r/u/w/v, 2X2 MU-MIMO|WLAN (Wi-Fi Alliance certified):IEEE 802.11 a/b/g/n/ac|WLAN Security: OPEN, WEP, WPA/WPA2(Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)|WLAN Supported EAP:TLS, PEAP, TTLS, PWD, LEAP
- RAM / storage options
- 4 GB RAM / 64 GB Flash|6 GB RAM / 128 GB Flash|8 GB RAM / 128 GB Flash
- Storage temperature
- -22°F to 158°F|-30°C to +70°C
- Operating temperature
- -20°C to +50°C|-4°F to +122°F
- Tumble specification
- 1000 times at 0.5 m|1000 times at 1.64 ft
- Drop specification
- Multiple 1.5m per MIL-STD 810G drops to concrete at room temperature|Multiple 1.8m per MIL-STD 810G drops with rubber boot concrete at room temperature|Multiple 5ft per MIL-STD 810G drops to concrete at room temperature|Multiple 6ft per MIL-STD 810G drops with rubber boot concrete at room temperature
- X
- BRV900~51400955-100
- Cameras
- The Honeywell ScanPal EDA57 mobile
- Dimensions
- (6.26 in × 2.95 in × 0.57 in)
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -30°C to 70°C (-22°F to 158°F)
- Cameras
- The Honeywell ScanPal EDA57 mobile
- Dimensions
- (6.26 in × 2.95 in × 0.57 in)
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -30°C to 70°C (-22°F to 158°F)
Manufacturer lists options and regional variants. Confirm selected SKU, delivered OS and scan engine.
Lifecycle
- Sales status
- Current catalogue
- Status basis
- Listed in official model catalogue; regional orderability requires confirmation.
