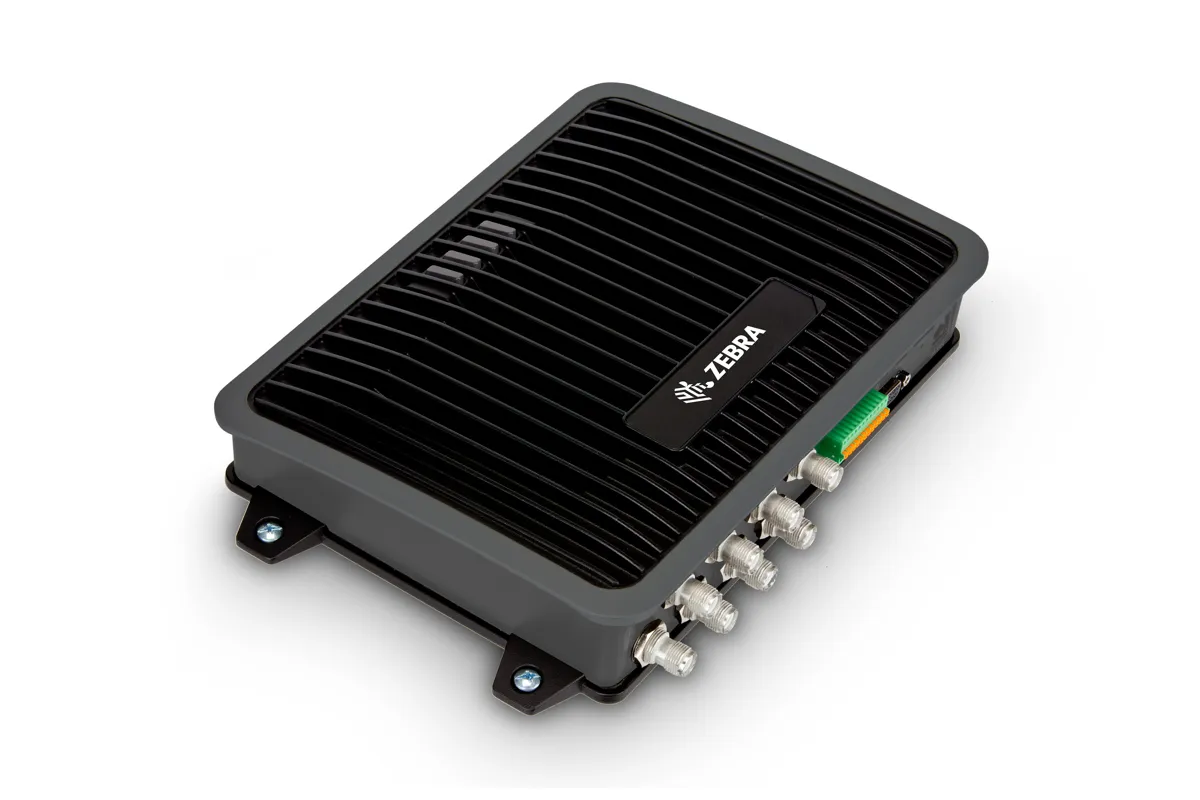

Zebra FX9600

Zebra · Fixed RFID reader

Zebra FX9600

View and download the technical specification sheet for the FX9600 Fixed UHF RFID Reader.

  • Operating systemLinux
  • SealingIP53

Datasheet at Zebra Product page at Zebra

Warning: This device is not compatible with Raptool apps. But you can use the Raptool Integration Server to send and receive data from the device to any other system.

Specifications

Platform

Operating system
Linux
Processor
Texas Instruments AM3505 (600 MHz)
RAM / storage options
Flash 512 MB; DRAM 256 MB

Data capture

RFID
ISO 18000-63 (EPC Class 1 Gen 2 V2)

Power

Charging / power
POE (802.3af) POE+ (802.3at) +24V DC (UL Approved) 24 V (external power), 36-57 VDC (external power)

Rugged

IP / sealing
IP53
Operating temperature
-4° to +131° F/-20° to +55° C -4°F to 131°F (-20°C to 55°C)
Storage temperature
-40° to +158° F/-40° to +70° C
Humidity
5-95% non-condensing

Size

Weight
Approx. 4.4 lbs/2.13 kg
Dimensions
10.75 in. L x 7.25 in. W x 2.0 in. D 27.3 cm L x 18.4 cm W x 5.0 cm D
